Product Summary

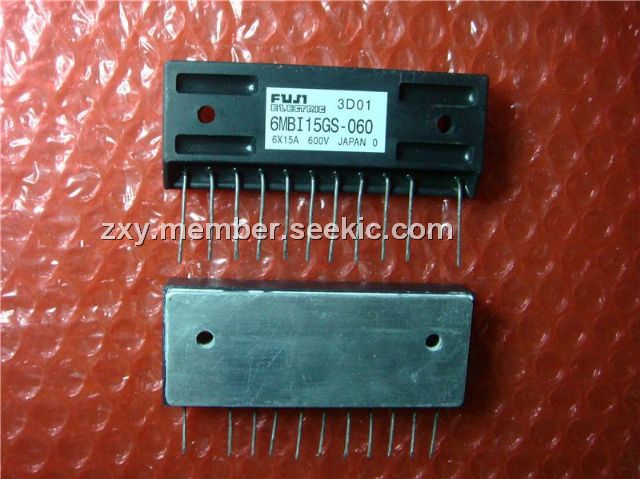

The 6MBI15GS060 is an IGBT Module. The applications of the 6MBI15GS060 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.
Parametrics
6MBI15GS060 absolute maximum ratings: (1)Collector-Emitter voltage: 600V; (2)Gate-Emitter voltage: ±20V; (3)Collector Current Continuous: 15A; (4) Collector Current 1ms: 30A; (5) Max. power dissipation PC: 60W; (6)Operating temperature Tj: +150℃; (7)Storage temperature Tstg: -40℃ to 125℃; (8)Isolation voltage Vis: AC 2000V (1 min.); (9) Screw torque: 1.7 N×m.
Features
6MBI15GS060 features: Compact Single in -line package.

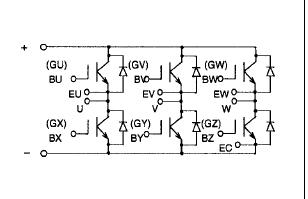

Diagrams
 |
