Product Summary

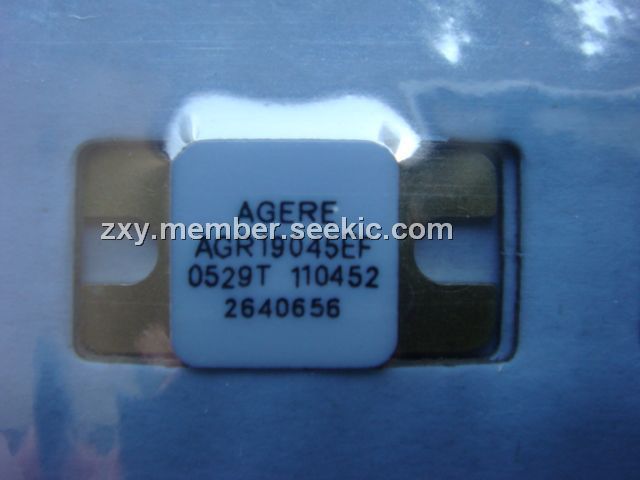

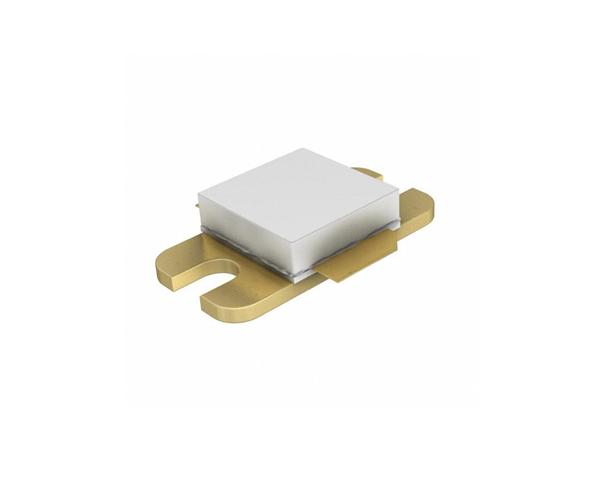

The AGR19045EF is a 45 W, 28 V N-channel laterally diffused metal oxide semiconductor (LDMOS) RF power field effect transistor (FET) suitable for personal communication service (PCS) (1930 MHz—1990 MHz), global system for mobile communication(GSM/EDGE), time-division multiple access (TDMA), and single-carrier or multicarrier class AB power amplifier applications.

Parametrics

AGR19045EF absolute maximum ratings: (1)Drain-source Voltage VDSS: 65 Vdc; (2)Gate-source Voltage VGS: –0.5, 15 Vdc; (3)Total Dissipation at TC = 25 ℃ PD: 115 W; (4)Derate Above 25 ℃: 0.67 W/℃; (5)Operating Junction Temperature TJ: 200 ℃; (6)Storage Temperature Range TSTG: –65, 150 ℃.

Features

AGR19045EF features: (1)High-reliability, gold-metalization process; (2)Low hot carrier injection (HCI) induced bias drift over 20 years.; (3)Internally matched; (4)High gain, efficiency, and linearity; (5)Integrated ESD protection; (6)Device can withstand 10:1 voltage standing wave ratio (VSWR) at 28 Vdc, 1930 MHz, 45 W CW output power; (7)Large signal impedance parameters available.

Diagrams

AGR19045EF Test Circuit Illustrations

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AGR19045EF
AGR19045EF

TriQuint Semiconductor

Transistors RF MOSFET Power RF LDMOS Transistor

Data Sheet

Negotiable
