Product Summary

The AV101 is a current controlled variable attenuator from the series of HIP3 components of Alpha. It is designed to meet the wide dynamic range required in spread spectrum wireless base station applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package reducing size and assuring consistency from part to part.

Parametrics

AV101 absolute maxing ratings: (1)RF Input Power: 0.5 W CW, 4 W ＠ 12.5% Duty Cycle; (2)Control Current: 50 mA per Diode; (3)Operating Temperature: -40 to +85℃; (4)Storage Temperature: -40 to +85℃; (5)Maximum Reverse Diode Voltage: -10 V; (6)Electrostatic Discharge: +125 V.

Features

AV101 features: (1)+50 dBm IP3 Typical; (2)Low Loss 1 dB Typical; (3)Attenuation 30 dB Typical; (4)Good VSWR <1.5:1 Typical; (5)Small SOIC-8 Package.

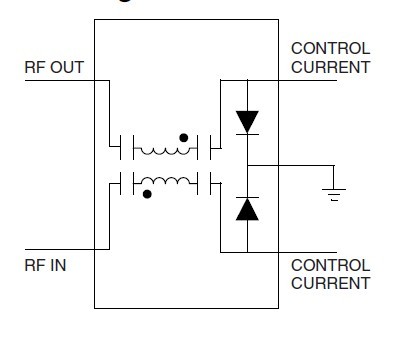

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AV101-12
AV101-12
Other

Data Sheet
Negotiable
AV101-12LF
AV101-12LF
Skyworks Solutions, Inc.
Attenuators (ICs) .7-1GHz IL 1dB typ. Attn. 30dB typ.
Data Sheet
0-1: $3.77
1-50: $3.73
50-100: $2.83
100-500: $2.57
AV101KE
AV101KE
Ohmite
Ceramic Composition Resistors 2Watt 100ohm 10%
Data Sheet
0-1: $8.42
1-10: $7.37
10-25: $6.32
25-50: $5.48
