Product Summary

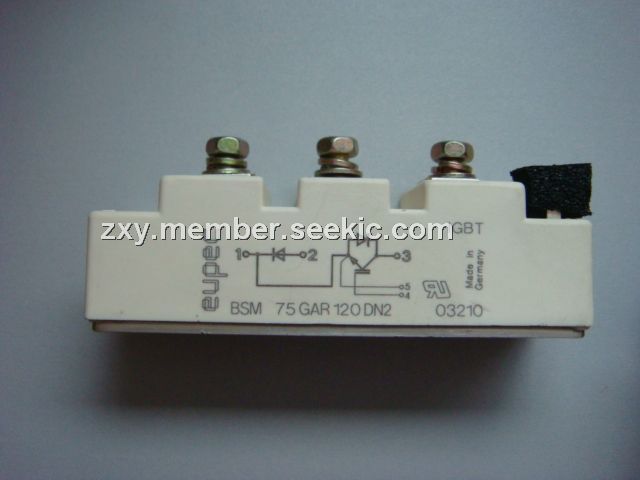

The BSM75GAR120DN2 is an IGBT Power Module.

Parametrics

BSM75GAR120DN2 absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage, VCGR: 1200V; (3)Gate-emitter voltage VGE: ± 20V; (4)Power dissipation per IGBT: 625W; (5)Chip temperature Tj: + 150℃; (6)Storage temperature Tstg: -40 to + 125℃; (7)Thermal resistance, chip case RthJC: ≤0.2 K/W; (8)Diode thermal resistance, chip case RthJCD: ≤ 0.5K/W; (9)Diode thermal resistance, chip-case,chopper RTHJCDC: ≤0.36K/W; (10)Insulation test voltage, t = 1min. Vis: 2500 Vac.

Features

BSM75GAR120DN2 features: (1)Single switch with chopper diode at collector; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

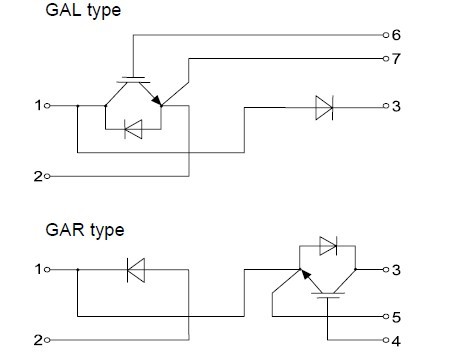

BSM75GAR120DN2 circuit diagram
