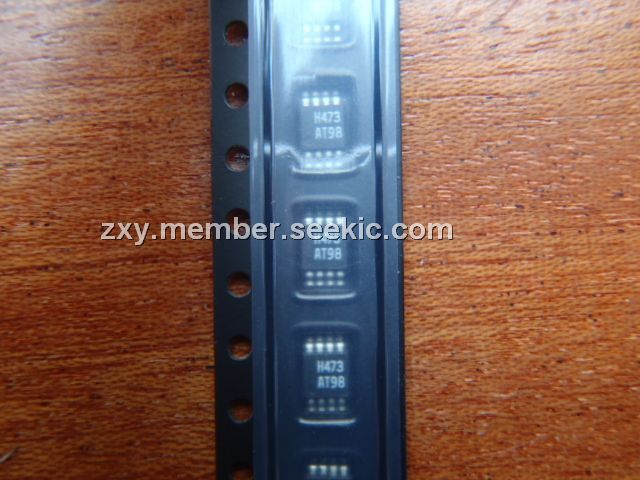

HMC473MS8

GaAs MMIC VOLTAGE-VARIABLE ATTENUATOR, 0.45 - 2.2 GHz, MSSOP8, 0 to +3V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~4.00

PartNumber:: HMC473MS8

Brand:: Hittite Microwave Corporation - Hittite | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-30

From Other Seller

Part Number:HMC473MS8
US $1.00 - 4.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

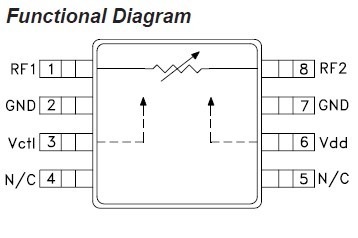

The HMC473MS8 is an absorptive voltage variable attenuator in an 8-lead MSOP package. The device operates with a +3.3V supply voltage and a 0 to +3V control voltage. Unique features include a high dynamic attenuation range of up to 48 dB and excellent power handling performance through all attenuation states. The HMC473MS8 is ideal for operation in wireless applications from 0.45 to 1.6 GHz. Operation from 1.7 to 2.2GHz is possible with a reduced maximum attenuation of 29 to 32 dB. The HMC473MS8 can be used with an external driver circuit for improved control voltage linearity vs. attenuation.

Parametrics

HMC473MS8 absolute maximum ratings: (1)VCTL: -0.2 Vdc to Vdd; (2)Vdd: +8 Vdc; (3)Maximum Input Power Vdd = +3.3 Vdc: +29 dBm Min. Atten; +21 dBm Attenuation >2 dB; (4)Channel Temperature (Tc): 150 ℃; (5)Thermal Resistance (RTH) (junction to lead): 92 ℃/W; (6)Storage Temperature: -65 to +150 ℃; (7)Operating Temperature: -40 to +85 ℃.

Features

HMC473MS8 features: (1)Single Positive Voltage Control: 0 to +3V; (2)High Attenuation Range: 48 dB @ 0.9 GHz; (3)High P1dB Compression Point: +15 dBm; (4)Ultra Small Package: MSOP8; (5)Replaces HMC173MS8.
