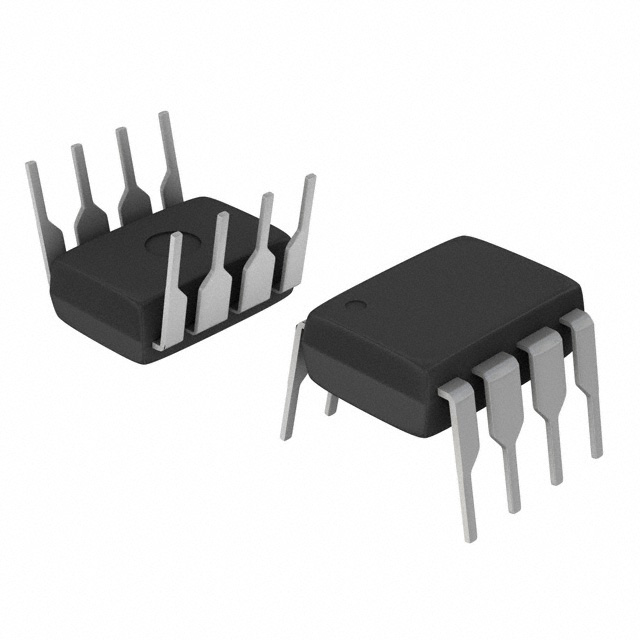

LM258N

Product Summary

The LM258N is a dual operational amplifier. It consists of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 32V, and VCC is at least 1.5V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. Applications of the LM258N include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, the LM258N can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5V supplies.

Parametrics

LM258N absolute maximum ratings: (1)Supply voltage, VCC (see Note 1): ±16 or 32V; (2)Differential input voltage, VID (see Note 2): ±32V; (3)Input voltage, VI (either input): -0.3 to 32V; (4)Duration of output short circuit (one amplifier) to ground at (or below) 25℃ free-air temperature (VCC≤15V) (see Note 3): ; (5)Unlimited; (6)Package thermal impedance, θJA (see Notes 4 and 5): 85℃/W; (7)Operating free-air temperature range, TA: -25℃ to 85℃; (8)Operating virtual junction temperature, TJ: 150℃; (9)Case temperature for 60 seconds FK package: 260℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds JG package: 300℃; (11)Storage temperature range, Tstg: -65℃ to 150℃.

Features

LM258N features: (1)Wide Supply Range; (2)Low Supply-Current Drain, Independent of Supply Voltage: 0.7mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32V (26V for LM2904); (6)Open-Loop Differential Voltage Amplification: 100V/mV Typ; (7)Internal Frequency Compensation.

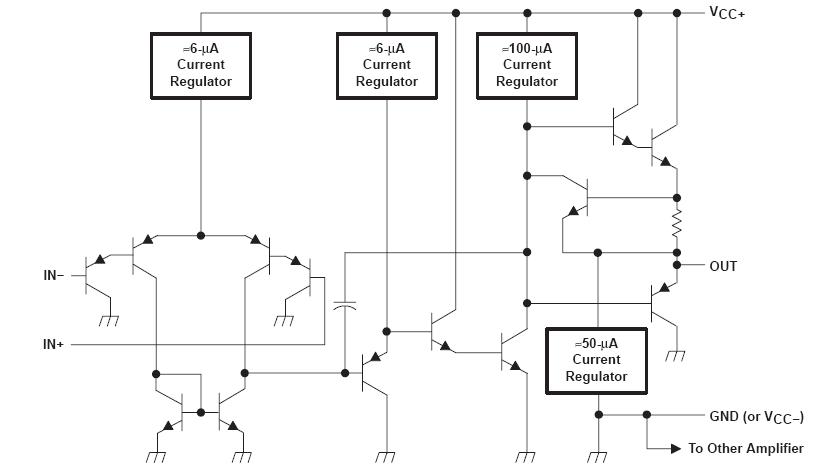

Diagrams
