Product Summary

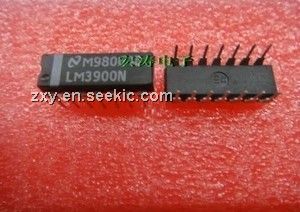

The LM3900N is a highgain frequency-compensated Norton operational amplifier that is designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is also possible. The low supply current drain is essentially independent of the magnitude of the supply voltage. The LM3900N provides wide bandwidth and large output voltage swing. The LM3900N is characterized for operation from 0℃ to 70℃.
Parametrics
LM3900N absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Input current: 20 mA; (3)Duration of output short circuit (one amplifier) to ground at (or below) 25℃ free-air temperature: unlimited; (4)Operating free-air temperature range: 0 to 70℃; (5)Storage temperature range: –65 to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
LM3900N features: (1)Wide Range of Supply Voltages, Single or Dual Supplies; (2)Wide Bandwidth; (3)Large Output Voltage Swing; (4)Output Short-Circuit Protection; (5)Internal Frequency Compensation; (6)Low Input Bias Current; (7)Designed to Be Interchangeable.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LM3900N |
![]() Texas Instruments |
![]() Operational Amplifiers - Op Amps Quad |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM3900NE4 |
![]() Texas Instruments |
![]() Operational Amplifiers - Op Amps Quadruple Oper Amplifier |
![]() Data Sheet |
![]()
|
|
