Product Summary

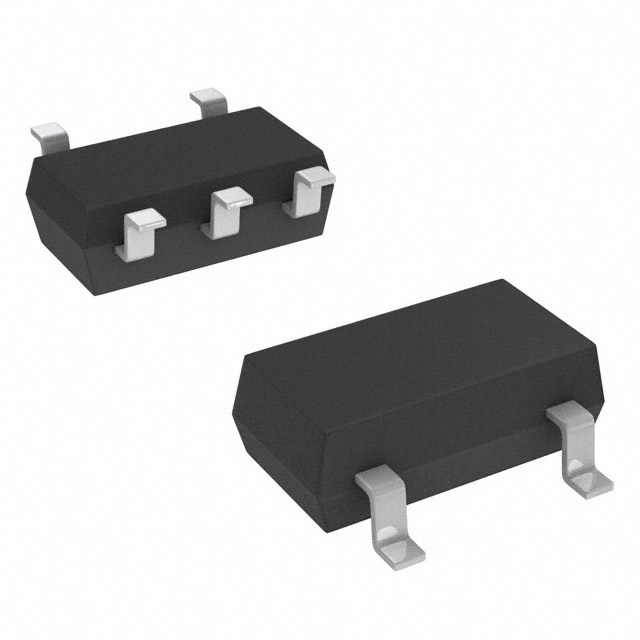

The LM4041DIM7-1.2 is a Precision Micropower Shunt Voltage Reference. Ideal for space critical applications, it is available in the sub-miniature SC70 surface-mount package. Its advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4041DIM7-1.2 easy to use. Further reducing design effort is the availability of 1.225V reverse breakdown voltage. The minimum operating current is 60 μA. It has a maximum operating current of 12 mA. The LM4041DIM7-1.2 utilizes fuse and zener-zap reverse breakdown or reference voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25℃. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
Parametrics
LM4041DIM7-1.2 absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Maximum Output Voltage: 15V; (4)Power Dissipation (TA = 25℃): 241mW; (5)Storage Temperature: -65℃ to +150℃; (6)ESD Susceptibility Human Body Model: 2 kV; (7)Machine Model: 200V; (8)Industrial Temperature Range: -40℃ to +85℃; (9)Extended Temperature Range: -40℃ to +125℃; (10)Reverse Current: 60 μA to 12 mA.
Features
LM4041DIM7-1.2 features: (1)Small package: SC70; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)Reverse breakdown voltage of 1.225V; (5)Output voltage tolerance (A grade, 25℃) ±0.1%(max); (6)Low output noise (10 Hz to 10kHz) 20μVrms; (7)Wide operating current range 60μA to 12mA; (8)Industrial temperature range -40℃ to +85℃; (9)Extended temperature range -40℃ to +125℃; (10)Low temperature coefficient 100 ppm/℃ (max).

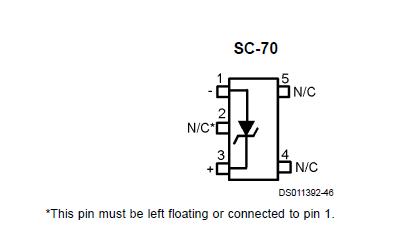

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4041DIM7-1.2 |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
|
LM4041DIM7-1.2/NOPB |
National Semiconductor (TI) |
Voltage & Current References |
Data Sheet |
|
|
||||||||||||
