Product Summary

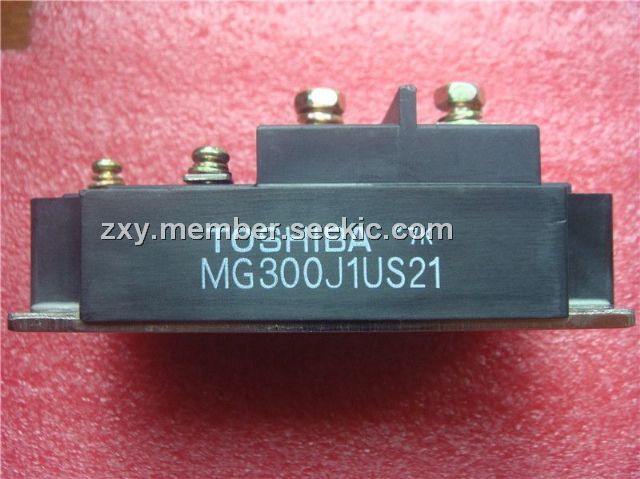

The MG300J1US21 is a TOSHIBA GTR module.
Parametrics
MG300J1US21 absolute maximum ratings: (1)Collector-Emitter Voltage: 600V; (2)Gate-Emitter Voltage: ±20V; (3)Collector Current DC: 300A; (4)Collector Current 1ms: 600A; (5)Forward Current DC: 300A; (6)Forward Current 1ms: 600A; (7)Collector Power Dissipation (TC=25℃): 1300W; (8)Junction Temperature: 150℃; (9)Storage Temperature Range: -40℃ to 125℃; (10)Isolation Voltage: 2500V.
Features
MG300J1US21 features: (1) The electrodes are isolated from case; (2) High input inpendance; (3) Includes a complete Half Bridge in one package; (4) Enhancement-Mode; (5)High Speed: tf=0.3μs (Max.)(IC=300A), trr=0.15μs (Max.)(IF=300A); (6) Low Saturation Voltage: VCE=2.7V (Max.)(IC=300A).

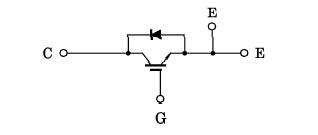

Diagrams
 |
