Product Summary

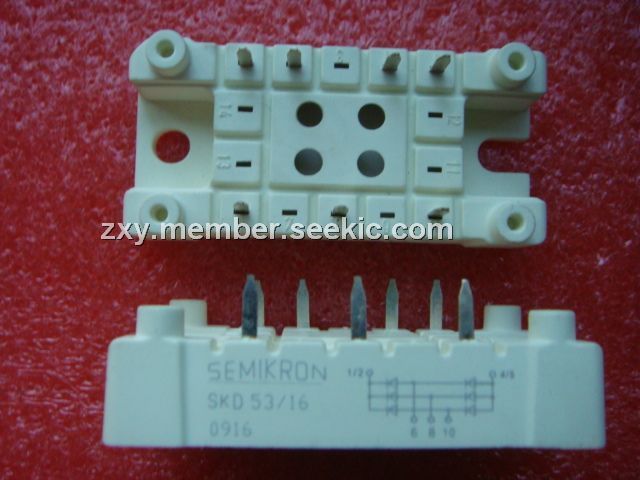

The SKD53/16E is a Power Bridge Rectifier. The applications of the SKD53/16E include three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies, battery charger rectifiers.

Parametrics

SKD53/16E absolute maximum ratings: (1)ID: 53 A at Ts=100℃; (2)IFSM: 370 A at Tvj=25℃; 10ms; (3)i2t: 685 A2s at Tvj=25℃; 8,3,10ms; (4)VF: 1.5 V max at Tvj=25℃, IF=50A; (5)V(TO): 0.8 V max at Tvj=150℃; (6)IRD: 0.2 mA max at Tvj=25℃, VDD=VDRM, VRD=VRRM, 4 mA at Tvj=150℃; VRD=VRRM.

Features

SKD53/16E features: (1)glass passivated silicon chips; (2)low thermal impredance through use of direct copper bonded aluminum substrate base plate; (3)blocking voltage up to 1800 V; (4)suitable for PCB mounting and wave soldering; (5)for applications with high vibrations we recommend to fasten the bridge to the pcb with 4 selftapping screw; (6)UL recognition applied for.

Diagrams

SKD53/16E block diagram
