Product Summary

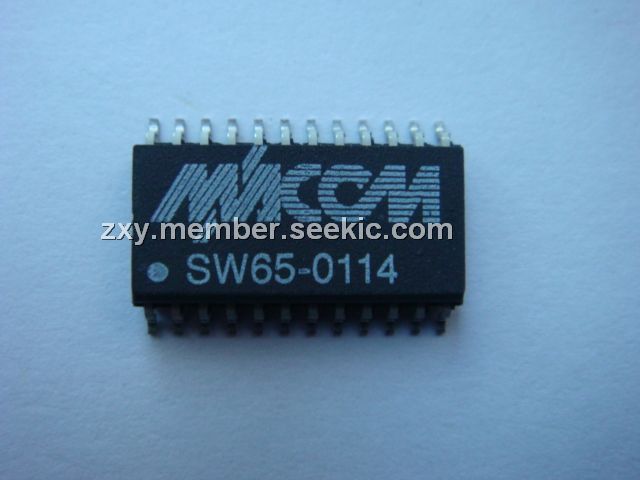

The SW65-0114 is a GaAs MMIC absorptive SPDT switch with an integral silicon ASIC driver. It is in a 24-lead plastic package. The SW65-0114 offers excellent broadband performance and repeatability from DC to 3 GHz, while maintaining low DC power dissipation. It is ideally suited for wireless infrastructure applications. And the SW65-0114 is also available in ceramic package with improved performance.
Parametrics
SW65-0114 absolute maximum ratings: (1)Max. Input Power: +27dBm at 0.05 GHz; +34dBm at 0.5 - 3.0 GHz; (2)Bias Voltages, VEE: -8.5V; VCC: +5.5V; Control Voltage: -0.5V to VCC +0.5V; (3)Operating Temperature: -40 to +85℃; (4)Storage Temperature: -65 to +125℃.
Features
SW65-0114 features: (1)Typical Isolation: 36 dB (2,000 MHz); (2)Typical Insertion Loss: 1.8 dB (2,000 MHz); (3)Integral ASIC TTL/CMOS Driver; (4)Plastic, 50 mil Pitch, SOW-24 Lead, Wide Body; (5)Low DC Power Consumption; (6)50 Ohm Nominal Impedance; (7)Tape and Reel Packaging Available; (8)Test Boards Available.
