Product Summary

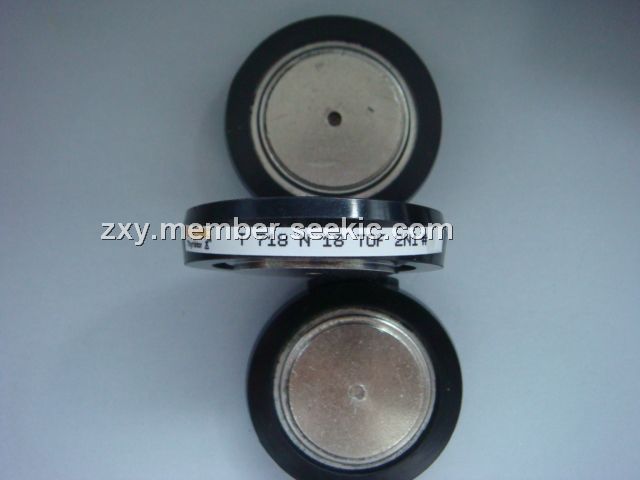

The T718N18TOF is a kind of Phase Control SCR. Typical applications for the T718N18TOF include power supplies, motor control, battery chargers, induction heaters, welders, and platers.
Parametrics
T718N18TOF absolute maximum ratings: (1)Vrrm (volts):1,800 Volts; (2)Vdrm (volts):1,800 Volts; (3)It (rms) Amps:1,500 Amps; (4)It (avg) Amps:719 Amps; (5)Itsm Amps:14,500 Amps; (6)di/dt (A/microseconds):120; (7)dv/dt (V/microseconds):1,000; (8)I2T@50Hz (A2Sec):1,051,000; (9)Vtm (volts):1.94 Volts; (10)tq (microseconds):250 MicroSeconds; (11)Irrm Peak (mA):80 MilliAmps; (12)Idrm Peak (mA):80 MilliAmps; (13)Igt (mA):250 MilliAmps; (14)Vgt (volts):1.5 Volts.
Features
T718N18TOF features: (1)Si-pellet with pressure contact; (2)clamping force, F: 9 to 18 kN; (3)weight, T718N/T719N, G: typ. 160/270 g; (4)creepage distance, T718N/T719N: 17/25 mm; (5)humidity classification: DIN 40040C; (6)vibration resistance f = 50 Hz: 50 m/s2; (7)outline, attached: DIN 41814-153 D4/-153C4.

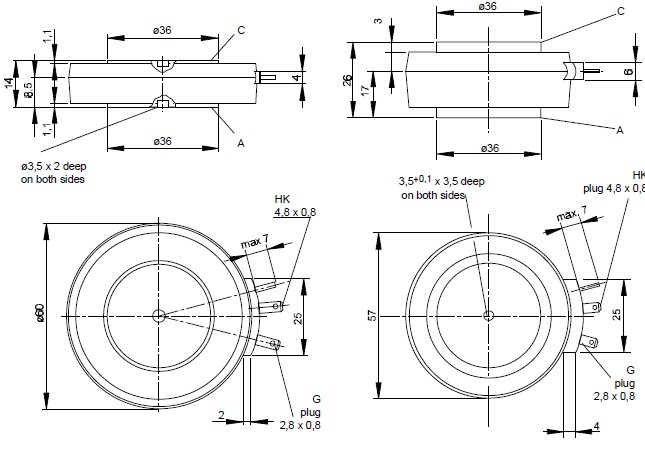

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 T718N18TOF |
Infineon Technologies |
SCR Modules 1.8KV 14.5KA |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
T718N10TOF |
Infineon Technologies |
SCRs PCT 1000V 719A |
Data Sheet |
Negotiable |
|
||||
|
T718N12TOF |
Infineon Technologies |
SCR Modules 1.2KV 14.5KA |
Data Sheet |
Negotiable |
|
||||
|
T718N14TOF |
Infineon Technologies |
SCR Modules 1.4KV 14.5KA |
Data Sheet |
Negotiable |
|
||||
|
T718N16TOF |
Infineon Technologies |
Discrete Semiconductor Modules 1600V 718A |
Data Sheet |
Negotiable |
|
||||
|
T718N18TOF |
Infineon Technologies |
SCR Modules 1.8KV 14.5KA |
Data Sheet |
Negotiable |
|
||||
|
T718N14TOF VT |
Infineon Technologies |
SCRs PCT 1400V 719A |
Data Sheet |
Negotiable |
|
||||
