Product Summary

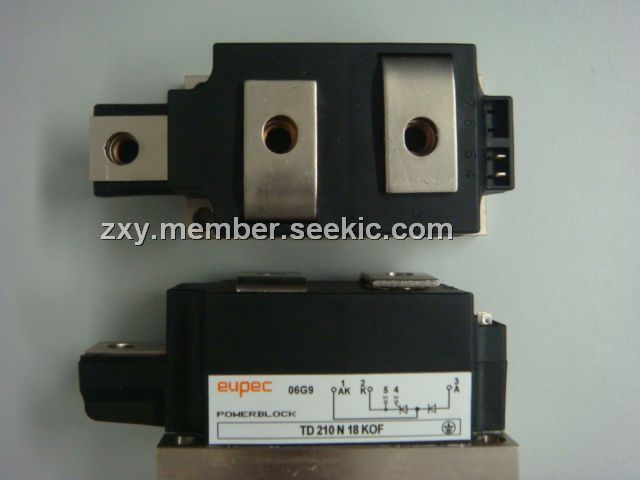

The TD210N18KOF is a Phase Control Thyristor Module.

Parametrics

TD210N18KOF characteristic values: (1)on-state voltage: 1.65 V max at Tvj = Tvj max , iT = 700 A; (2)threshold voltage: 1 V at Tvj = Tvj max; (3)slope resistance: 0.85 m at Tvj = Tvj max; (4)gate trigger current: 200 mA at Tvj = 25℃, vD = 6 V; (5)gate trigger voltage: 2 V max at Tvj = 25℃, vD = 6 V; (6)gate non-trigger current: 10 mA max at Tvj = Tvj max , vD = 6 V, 5 mA at Tvj = Tvj max , vD = 0,5 VDRM; (7)gate non-trigger voltage: 0.2 V at Tvj = Tvj max , vD = 0,5 VDRM.

Features

TD210N18KOF mechanical properties: (1)mounting torque: 5 Nm; (2)terminal connection torque: 12 Nm; (3)control terminals: A 2.8x0.8; (4)weight: 800 g; (5)creepage distance: 17mm.

Diagrams

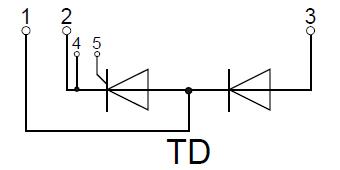

TD210N18KOF block diagram
