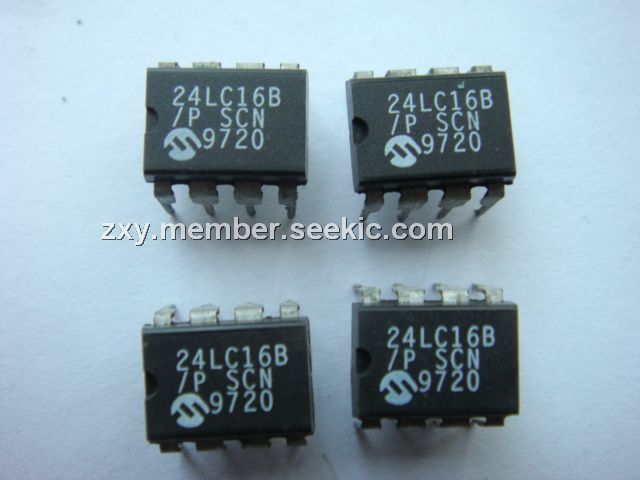

24LC16B/P

Electrically Erasable PROM, 7.0V, 256 x 8-bit, Low power CMOS technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: 24LC16B/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:24LC16B/P
US $0.10 - 0.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

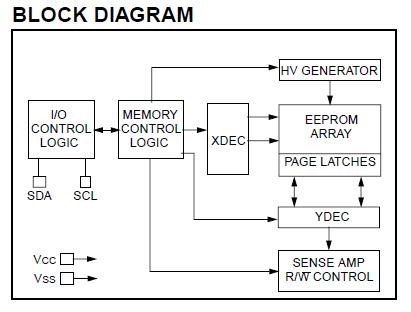

The Microchip Technology Inc. 24LC16B/P is a 16K bit Electrically Erasable PROM in ISO modules for smart card applications. It is organized as four or eight blocks of 256 x 8-bit memory with a 2-wire serial interface. The 24LC16B/P also has a page-write capability for up to 16 bytes of data.

Parametrics

24LC16B/P absolute maximum ratings: (1)VCC: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temp. with power applied: -65℃ to +125℃; (5)Soldering temperature of leads (10 seconds): +300℃; (6)ESD protection on all pins: ≥ 4 kV.

Features

24LC16B/P features: (1)ISO 7816 compliant contact locations; (2)Single supply with operation from 2.5-5.5V; (3)Low power CMOS technology: 1 mA active current typical, 10 mA standby current typical at 5.5V; (4)Organized as 4 or 8 blocks of 256 bytes (4 x 256 x 8) or (8 x 256 x 8); (5)2-wire serial interface bus, I2C compatible; (6)Schmitt trigger inputs for noise suppression; (7)Output slope control to eliminate ground bounce; (8)100 kHz (2.5V) and 400kHz (5V) compatibility; (9)Self-timed write cycle (including auto-erase); (10)Page-write buffer for up to 16 bytes; (11)2 ms typical write cycle time for page-write; (12)ESD protection > 4,000V; (13)1,000,000 ERASE/WRITE cycles guaranteed; (14)Data retention > 200 years.
