ACMD-7401-TR1

Miniature PCS Band Duplexer, QFN, 30 dBm Tx Power Handling, 1930–1990 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~2.00

PartNumber:: ACMD-7401-TR1

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: QFN | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:ACMD-7401-TR1
US $0.80 - 2.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

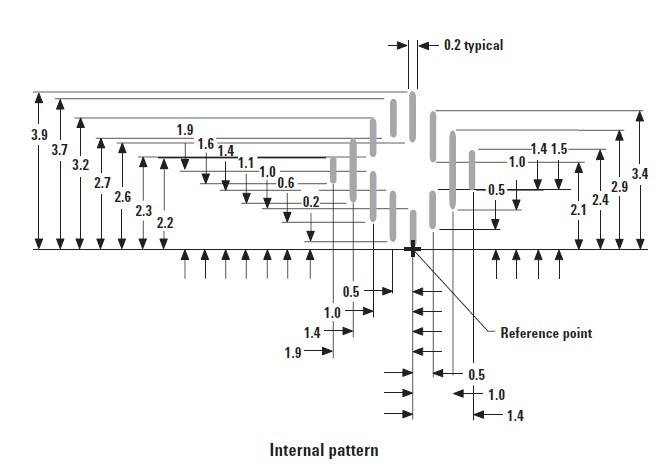

The ACMD-7401-TR1 is a miniaturized duplexer designed using Agilent Film Bulk Acoustic Resonator (FBAR) technology. The ACMD-7401-TR1 is the first duplexer built with Agilent innovative Microcap bonded-wafer chip scale packaging technology. This process allows the ultra small filters to be assembled in a molded chip-on-board (MCOB) module that is less than 1.4 mm high with a 5 x 5 mm footprint. The ACMD-7401-TR1 enhances the sensitivity and dynamic range of CDMA receivers, providing more than 50 dB attenuation of transmitted signal at the receiver input, and more than 40 dB rejection of the transmit-generated noise in the receive band. Typical insertion loss in the Tx channel is only 1.8 dB, minimizing current drain from the power amplifier. Typical insertion loss in the Rx channel is 2.2 dB, improving receiver sensitivity.

Features

ACMD-7401-TR1 features: (1)Miniature size: less than 1.4 mm high, 5 x 5 mm footprint; (2)Rx Band: 1930-1990 MHz typical performance: Rx Noise Blocking: 44 dB; (3)Insertion Loss: 2.2 dB typical, 3.0 dB band edge; (4)Tx Band: 1850-1910 MHz typical performance: Tx Interferer Blocking: 54 dB; (5)Insertion Loss: 1.8 dB typical, 2.5 dB band edge; (6)30 dBm Tx Power Handling.
