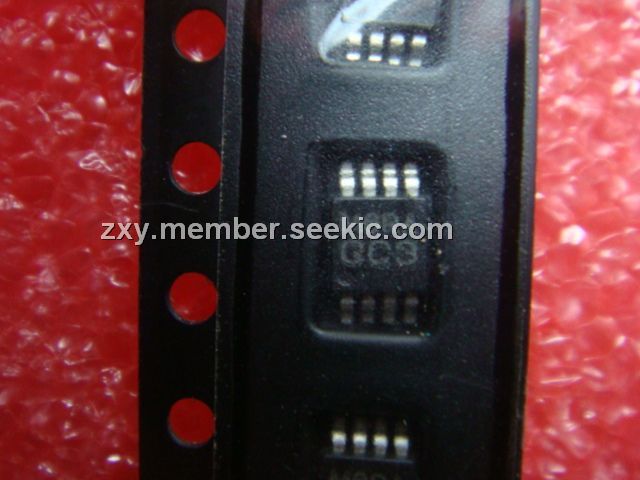

LM4902MMX

bridged audio power amplifier, 3.3V power supply, MSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.32~0.32

PartNumber:: LM4902MMX

Brand:: National Semiconductor - NS | Pack: MSOP | D/C: 10+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:LM4902MMX
US $0.32 - 0.32
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM4902MMX is a bridged audio power amplifier capable of delivering 265mW of continuous average power into an 8W load with 1% THD+N from a 3.3V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power from a low supply voltage while requiring a minimal amount of external components. Since the LM4902MMX does not require output coupling capacitors, bootstrap capacitors or snubber networks, it is optimally suited for low-power portable applications. The LM4902MMX features an externally controlled, low power consumption shutdown mode, and thermal shutdown protection. The closed loop response of the unity-gain stable LM4902MMX can be configured by external gain-setting resistors.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: -65℃ to +150℃; (3)Input Voltage:-0.3V to VDD + 0.3V; (4)Power Dissipation: Internally limited; (5)ESD Susceptibility: 2000V; (6)ESD Susceptibility: 200V; (7)Junction Temperature: 150℃; (8)Small Outline Package Vapor Phase (60 sec.): 215℃; (9)Infrared (15 sec.): 220℃; (10)Thermal Resistance of θJC (MSOP): 56℃/W; (11)Thermal Resistance of θJA (MSOP): 190℃/W; (12)Thermal Resistance of θJA (LLP): 67℃/W.

Features

Features: (1)MSOP and LLP packaging; (2)No output coupling capacitors, bootstrap capacitors, or snubber circuits are necessary; (3)Thermal shutdown protection circuitry; (4)Unity-gain stable; (5)External gain configuration capability; (6)Latest generation click and pop suppression circuitry.
