Product Summary

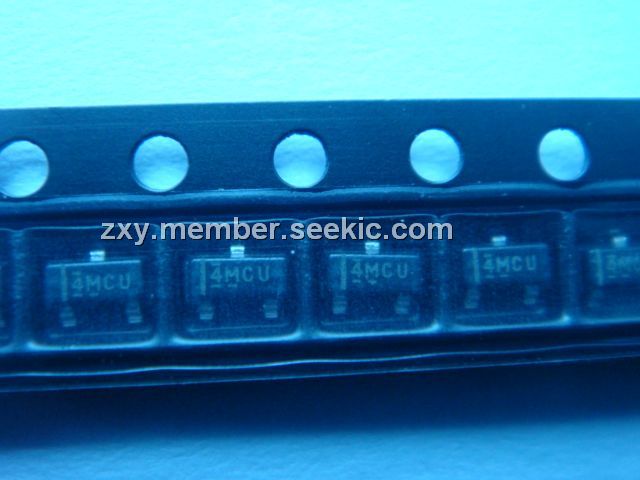

The LM4040A20IDBZR shunt voltage reference is a versatile, easy-to-use reference that cater to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4040A20IDBZR uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (max) for the A grade to 1% (max) for the D grade. Packaged in space-saving SC-70 and SOT-23-3 packages and requiring a minimum current of 45 mA (typ), the LM4040A20IDBZR also is ideal for portable applications.

Parametrics

Absolute maximum ratings over free-air temperature range: (1)IZ, Continuous cathode current: –10 to 25 mA; (2)θJA, Package thermal impedance: DBZ package: 206 °C/W max; DCK package: 252 °C/W max; LP package: 156 °C/W max; (3)TJ, Operating virtual junction temperature: 150 °C max; (4)Tstg, Storage temperature range: –65 150 °C.

Features

Features: (1)Fixed Output Voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V; (2)Tight Output Tolerances and Low Temperature Coefficient: Max 0.1%, 100 ppm/°C – A Grade; Max 0.2%, 100 ppm/°C – B Grade; Max 0.5%, 100 ppm/°C – C Grade; Max 1.0%, 150 ppm/°C – D Grade.; (3)Low Output Noise: 35 mVRMS Typ; (4)Wide Operating Current Range: 45 mA Typ to 15 mA; (5)Stable With All Capacitive Loads; No Output Capacitor Required; (6)Available in Extended Temperature Range: –40°C to 125°C.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM4040A20IDBZR
LM4040A20IDBZR
Texas Instruments
Voltage & Current References 2.048V Precision Mcrpwr Shunt .1% acc
Data Sheet
0-1: $1.73
1-25: $1.39
25-100: $1.27
100-250: $1.11
LM4040A20IDBZRG4
LM4040A20IDBZRG4
Texas Instruments
Voltage & Current References 2.048V Precision Mcrpwr Shunt .1% acc
Data Sheet
0-2230: $0.81
2230-3000: $0.78
3000-6000: $0.75
