Product Summary

The AD8314ARMZ-REEL7 is one member of the AD8314 series.The AD8314ARMZ-REEL7 is a complete low-cost subsystem for the measurement and control of RF signals in the frequency range 0.1 GHz–2.5 GHz, with a typical dynamic range of 45 dB,intended for use in a wide variety of cellular handsets and other wireless devices. It provides a wider dynamic range and better accuracy than possible using discrete diode detectors. In particular, its temperature stability is excellent over the full operating range of–30℃ to +85℃.

Parametrics

Absolute maximum ratings: (1)supply voltage VPOS:-5.5V;(2)storage temperature range:-65 to 150℃;(3)input voltage:1.6V;(4)operating temperature:-30 to 85℃;(5)internal power dissipation:200mW.

Features

Features:(1)complete RF detector/controller function; (2)typical range –58 dBV to –13 dBV–45 dBm to 0 dBm re 50Ω; (3)frequency response from 100 MHz to 2.5 GHz; (4)temperature-stable linear-in-dB response accurate to 2.5 GHz; (5)rapid response: 70 ns to a 10 dB step; (6)low power: 12 mW at 2.7 V; (7)power-down to 20 μA.The AD8314 provides two voltage outputs.

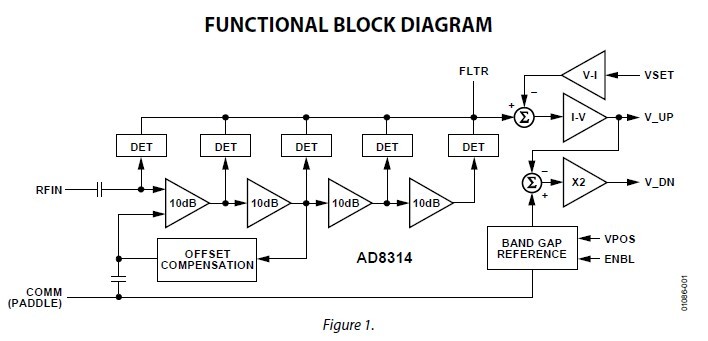

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

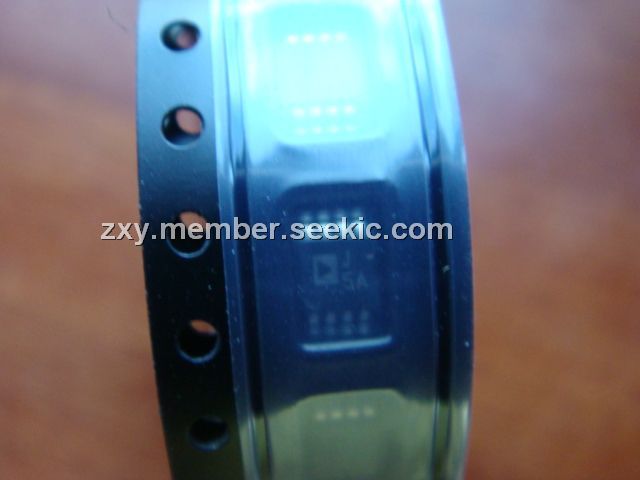

AD8314ARMZ-REEL7
AD8314ARMZ-REEL7

IC RF DETECTOR/CTRLR 8-MSOP
Data Sheet
0-1: $5.83
1-10: $5.24
10-25: $4.76
25-100: $4.31
100-250: $3.95
250-500: $3.61
