Product Summary
The LM4040A30IDBZR of shunt voltage references are versatile, easy-to-use references that cater to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4040A30IDBZR uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (max) for the A grade to 1% (max) for the D grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications. Packaged in space-saving SC-70 and SOT-23-3 packages and requiring a minimum current of 45 mA (typ), the LM4040A30IDBZR also is ideal for portable applications.
Parametrics
Absolute maximum ratings: (1)continuous cathode current:-10 to 25 mA;(2)package thermal impedance: 206 °C/W;(3)operating virtual junction temperature:150 °C;(4)storage temperature range:-65 to 150 °C.
Features
Features:(1)fixed output voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, and 10 V;(2)tight output tolerances and low temperature coefficient;(3)low output noise:35 uVRMS typ;(4)wide operating current range:45 uA typ to 15 mA;(5)stable with all capacitive loads;no output capacitor required;(6)available in extended temperature range:-40°C to 125°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

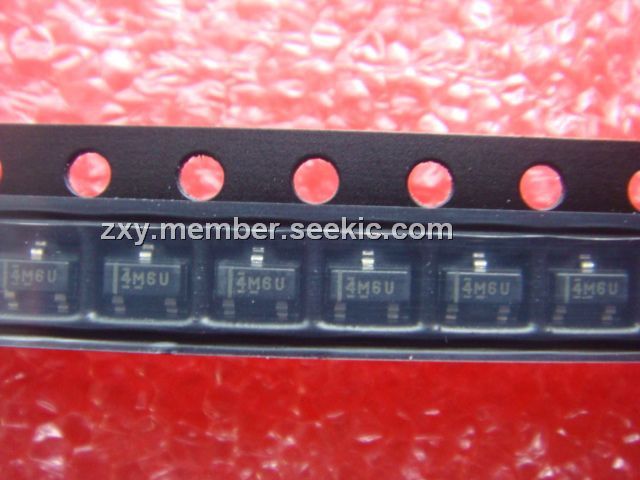

 LM4040A30IDBZR |
Texas Instruments |
Voltage & Current References 3V Precision Mcrpwr Shunt .1% acc |
Data Sheet |
|
|
||||||||||||
|
LM4040A30IDBZRG4 |
Texas Instruments |
Voltage & Current References 3V Precision Mcrpwr Shunt .1% acc |
Data Sheet |
|
|
||||||||||||
