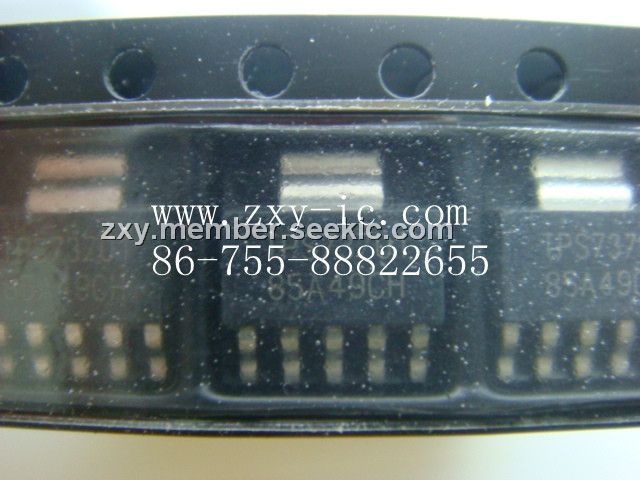

Product Summary
The TPS73701DCQR is a linear low-dropout (LDO) voltage regulator using an NMOS pass element in a voltage-follower configuration. This topology is relatively insensitive to output capacitor value and ESR, allowing a wide variety of load configurations. Load transient response is excellent, even with a small 1.0μF ceramic output capacitor. The NMOS topology also allows very low dropout for the die size used. The topology uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1μA and ideal for portable applications. The device is protected by thermal shutdown and foldback current limit.
Parametrics
Absolute maximum ratings: (1)VIN, range: –0.3 to +6.0 V; (2)VEN, range: –0.3 to +6.0 V; (3)VOUT, range: –0.3 to +5.5 V; (4)Peak, output current: Internally limited; (5)Output short-circuit duration: Indefinite; (6)Continuous total power dissipation: See Dissipation Ratings Table; (7)Junction temperature range, TJ: –55 to +150 °C; (8)Storage temperature range: –65 to +150 °C; (9)ESD rating, HBM: 2 kV; (10)ESD rating, CDM: 500 V.
Features
Features: (1)Stable with 1.0μF or Larger Ceramic Output Capacitor; (2)Input Voltage Range: 2.2V to 5.5V; (3)Ultra-Low Dropout Voltage: 130mV typ at 1A; (4)Excellent Load Transient Response—Even With Only 1.0μF Output Capacitor; (5)NMOS Topology Delivers Low Reverse Leakage Current; (6)0.5% Initial Accuracy; (7)3% Overall Accuracy Over Line, Load, and Temperature; (8)Less Than 20nA typical IQ in Shutdown Mode; (9)Thermal Shutdown and Current Limit for Fault Protection; (10)Available in Multiple Output Voltage Versions: Adjustable Output: 1.20V to 5.5V; Custom Outputs Available Using Factory Package-Level Programming.

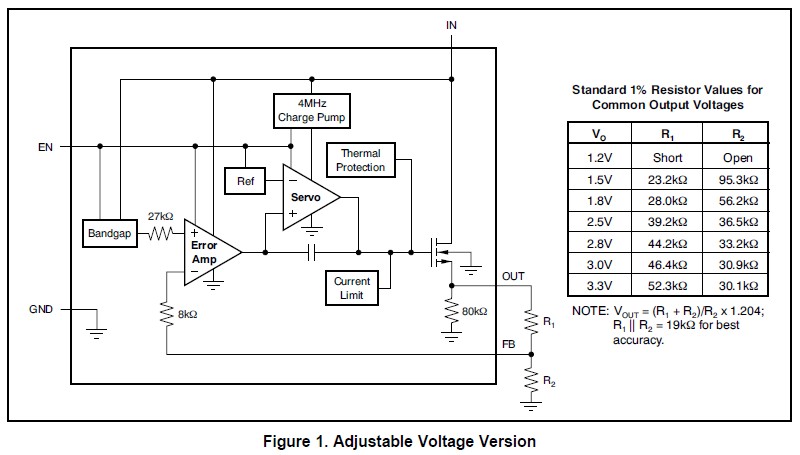

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS73701DCQR |
Texas Instruments |
Low Dropout (LDO) Regulators 1.0A LDO Regulator |
Data Sheet |
|
|
||||||||||||
|
TPS73701DCQRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators 1.0A LDO Regulator |
Data Sheet |
Negotiable |
|
||||||||||||
