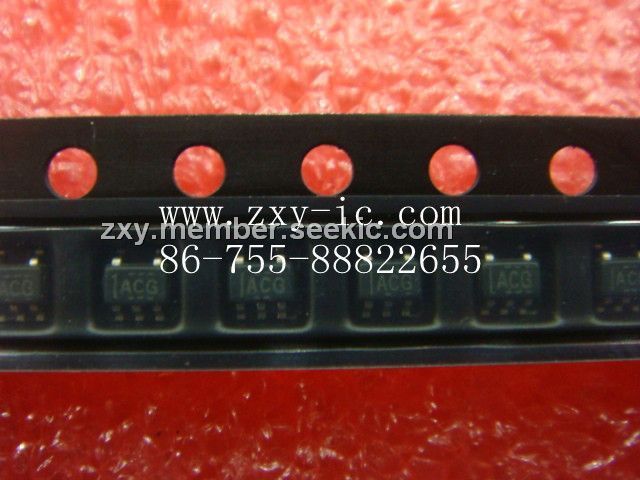

Product Summary

The SN74AHC1G04DCKR is a single inverter gate. The device performs the Boolean function Y = A. Its operating Range is 2 V to 5.5 V. The schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time. The latch-Up performance of SN74AHC1G04DCKR exceeds 250 mA Per JESD 17.

Parametrics

Absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI (see Note 1): -0.5 V to 7 V; (3)Output voltage range, VO (see Note 1): -0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): -20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Package thermal impedance, θJA (see Note 2): DBV package: 206°C/W; DCK package: 252°C/W; DRL package : 142°C/W; (9)Storage temperature range, Tstg: -65°C to 150°C.

Features

Features: (1)Operating Range of 2 V to 5.5 V; (2)Max tpd of 8 ns at 5 V; (3)Low Power Consumption, 10-μA Max ICC; (4)±8-mA Output Drive at 5 V; (5)Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time; (6)Latch-Up Performance Exceeds 250 mA Per JESD 17.

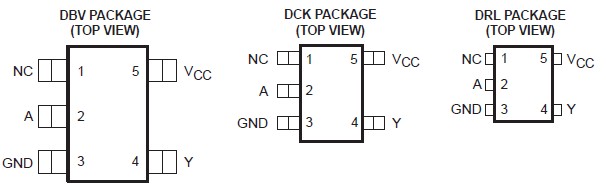

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74AHC1G04DCKR
SN74AHC1G04DCKR

Texas Instruments

Inverters Single

Data Sheet

0-1: $0.22
1-25: $0.12
25-100: $0.10
100-250: $0.07
SN74AHC1G04DCKRE4
SN74AHC1G04DCKRE4

Texas Instruments

Inverters SINGLE INVERTER GATE

Data Sheet

0-1: $0.25
1-25: $0.14
25-100: $0.11
100-250: $0.08
SN74AHC1G04DCKRG4
SN74AHC1G04DCKRG4

Texas Instruments

Inverters SINGLE INVERTER GATE

Data Sheet

0-1: $0.25
1-25: $0.14
25-100: $0.11
100-250: $0.08
