Product Summary

The AD8542ARUZ is a single, dual, and quad railto-rail input and output single-supply amplifier featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. The part provides 1 MHz bandwidth at a low current consumption of 45 mA per amplifier. Very low input bias currents enable the AD8542ARUZ to be used for integrators, photodiode amplifiers, piezo electric sensors, and other applications with high source impedance. Supply current is only 45 mA per amplifier, ideal for battery operation. The AD8542ARUZ is available in 8-lead SOIC, 8-lead MSOP, and 8-lead TSSOP surface-mount packages.

Parametrics

Absolute maximum ratings: (1)Supply Voltage (VS) : 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage2: ±6 V; (4)Storage Temperature Range: –65℃ to +150℃; (5)Operating Temperature Range: –40℃ to +125℃; (6)Junction Temperature Range: –65℃ to +150℃; (7)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

Features: (1)Single-Supply Operation: 2.7 V to 5.5 V; (2)Low Supply Current: 45 A/Amplifier; (3)Wide Bandwidth: 1 MHz; (4)No Phase Reversal; (5)Low Input Currents: 4 pA; (6)Unity Gain Stable; (7)Rail-to-Rail Input and Output.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

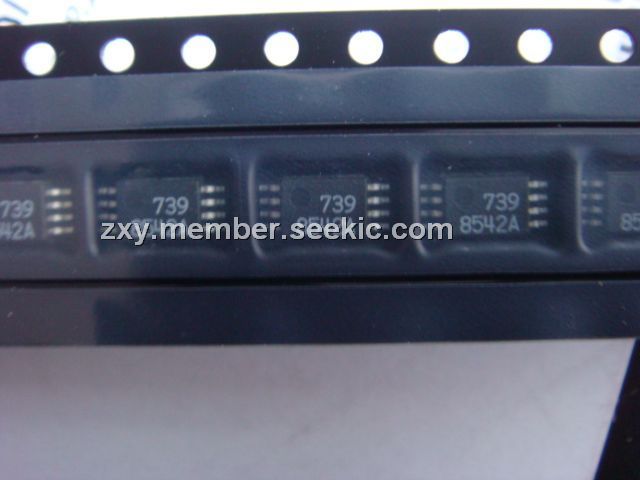

AD8542ARUZ
AD8542ARUZ

IC OPAMP GP R-R CMOS 1MHZ 8TSSOP
Data Sheet
0-1: $0.68
1-10: $0.60
10-100: $0.48
100-250: $0.42
250-500: $0.37
500-1000: $0.29
1000-2500: $0.27
2500-5000: $0.26
AD8542ARUZ-REEL
AD8542ARUZ-REEL

IC OPAMP GP R-R CMOS 1MHZ 8TSSOP
Data Sheet
0-2500: $0.27
