Product Summary

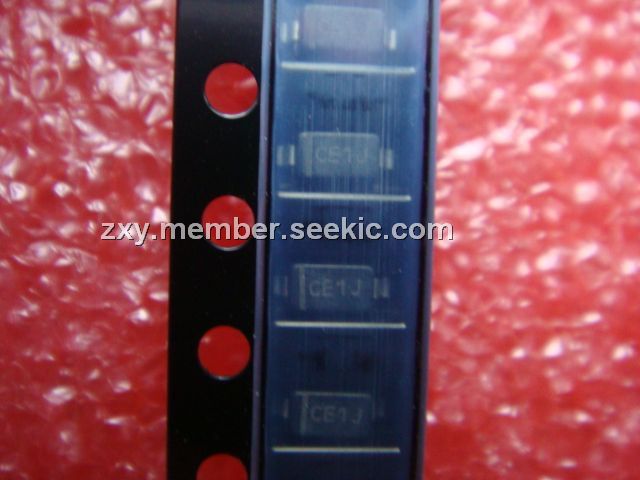

The MMSZ5257ET1G is zener voltage regulators, with 500 mW power consumption. Three complete series of zener diodes are offered in the convenient, surface mount plastic SOD−123 surface mount package. These devices provide a convenient alternative to the leadless 34−package style.
Parametrics
Absolute maximum ratings: (1)Peak Power Dissipation at 20 us at TL ≤ 25℃, Ppk: 225W; (2)Total Power Dissipation on FR-5 Board, at TL = 75℃, , PD: 500mW; (3)Total Power Dissipation on FR-5 Board, derated above 75℃, PD: 6.7mW/℃; (4)Thermal Resistance, Junction-to-Ambient, RθJA: 340℃/W; (5)Thermal Resistance, Junction-to-Lead, RθJL: 150℃/W; (6)Junction and Storage Temperature Range, TJ, Tstg: -55 to +150℃.
Features
Features: (1)500 mW Rating on FR?4 or FR?5 Board; (2)Wide Zener Reverse Voltage Range 2.4 V to 110 V; (3)Package Designed for Optimal Automated Board Assembly; (4)Small Package Size for High Density Applications; (5)General Purpose, Medium Current; (6)ESD Rating of Class 3 (>16 kV) per Human Body Model; (7)Peak Power 225 W (8 x 20 us); (8)Pb-Free Packages are Available.

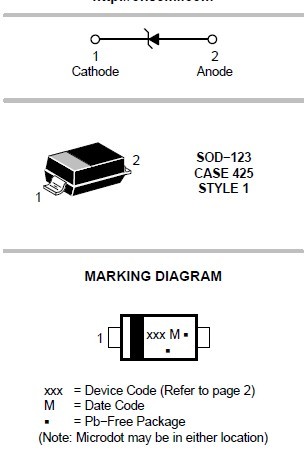

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMSZ5257ET1G |
ON Semiconductor |
Zener Diodes 33V 500mW |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MMSZ10 |
Taiwan Semiconductor |
Zener Diodes 10 Volt 500mW 5% |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMSZ10B |
Taiwan Semiconductor |
Zener Diodes 10 Volt 500mW 2% |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MMSZ10ET1 |
|
DIODE ZENER 10V 500MW SOD-123 |
Data Sheet |
|
|
||||||||||||
|
MMSZ10T1G |
ON Semiconductor |
Zener Diodes 10V 500mW |
Data Sheet |
|
|
||||||||||||
|
MMSZ10T3 |
ON Semiconductor |
Zener Diodes 10V 500mW |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMSZ10T3G |
ON Semiconductor |
Zener Diodes 10V 500mW |
Data Sheet |
Negotiable |
|
||||||||||||
