The MAX1792EUA15-T low-dropout linear regulator operates from a +2.5V to +5.5V supply and delivers a guaranteed 500mA load current with low 130mV dropout. The high-accuracy (±1%) output voltage is preset at an internally trimmed voltage (see Selector Guide) or can be adjusted from 1.25V to 5.0V with an external resistive divider. The device is available in a miniature 1.3W, 8-pin power-μMAX package with a metal pad on the underside of the package. The MAX1792EUA15-T is used in notebook computers, cellular and cordless telephones, personal digital assistants (pdas), palmtop computers, base stations, usb hubs, docking stations, etc.
Parametrics
Absolute maximum ratings: (1)IN, SHDN, RST, SET to GND: -0.3V to +6V; (2)OUT to GND: -0.3V to (VIN + 0.3V); (3)Output Short-Circuit Duration: Indefinite; (4)Continuous Power Dissipation (TA = +70℃): 8-Pin Power-μAX (derate 17mW/℃ above +70℃): 1.3W; (5)Operating Temperature Range: -40℃ to +85℃; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
Features: (1)Guaranteed 500mA Output Current; (2)Low 130mV Dropout at 500mA; (3)Up to ±1% Output Voltage Accuracy: Preset at 1.5V, 1.8V, 2.5V, 3.3V, or 5.0V; Adjustable from 1.25V to 5.0V; (4)Reset Output with 4ms Timeout Period; (5)Low 80μA Ground Current; (6)0.1μA Shutdown Current; (7)Thermal Overload Protection; (8)Output Current Limit; (9)Tiny 1.3W Power-μMAX Package.

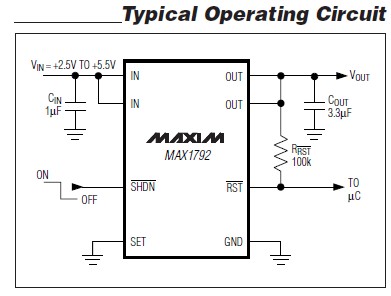

Diagrams
