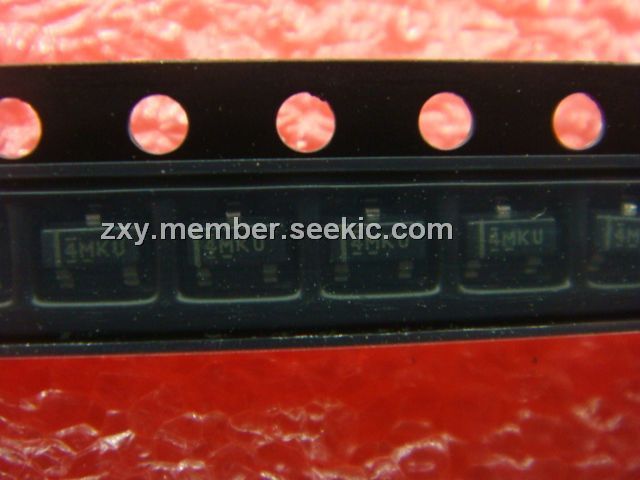

Product Summary
The LM4041A12IDBZR of shunt voltage references are versatile, easy-to-use references suitable for a wide array of applications. They require no external capacitors for operation and are stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and a low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4041A12IDBZR uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (max) for the A grade to 1% (max) for the D grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications. The LM4041A12IDBZR is available in a fixed (1.225 V nominal) or an adjustable version (which requires an external resistor divider to set the output to a value between 1.225 V and 10 V).
Parametrics
Absolute maximum ratings:(1)Continuous cathode voltage, VZ: 15V; (2)Continuous cathode current, IZ: –10 to 25mA; (3)Package thermal impedance, qJA, DBZ package: 206°C/W; (4)Package thermal impedance, qJA, DCK package: 252°C/W; (5)Package thermal impedance, qJA, LP package: 156°C/W; (6)Operating virtual junction temperature, TJ: 150°C; (7)Storage temperature range, Tstg: –65 to 150°C.
Features
Features:(1)1.225-V Fixed and Adjustable Outputs (1.225 V to 10 V) Tight Output Tolerances and Low Temperature Coefficient; (2)Low Output Noise: 20 μVRMS (Typ); (3)Wide Operating Current Range: 45 μA (Typ) to 12 mA; (4)Stable With All Capacitive Loads; No Output Capacitor Required; (5)Available in Industrial Temperature: -40°C to 85°C; (6)Available in Extended Temperature: -40°C to 125°C.

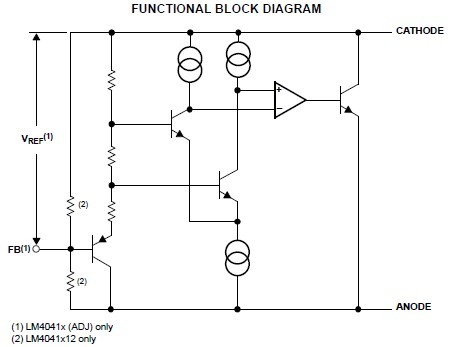

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4041A12IDBZR |
Texas Instruments |
Voltage & Current References 1.2V Precision Mcrpwr Shunt .1% acc |
Data Sheet |
|
|
||||||||||||
|
LM4041A12IDBZRG4 |
Texas Instruments |
Voltage & Current References 1.2V Precision Mcrpwr Shunt .1% acc |
Data Sheet |
|
|
||||||||||||
