Product Summary

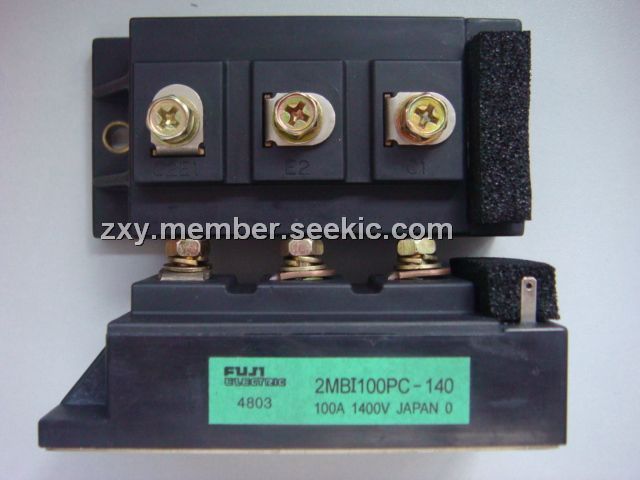

The 2MBI100PC-140 is a IGBT Module. The applications of 2MBI100PC-140 are: General purpose inverter; AC and DC Servo drive amplifier; Uninterruptible power supply.
Parametrics
2MBI100PC-140 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1400V; (2)Gate-Emitter voltage VGES: ±20V; (3)Collector current IC: 150A; (4)ICp: 300 A; (5)-IC: 100 A; (6)-IC pulse: 200 A; (7)Collector Power Dissipation PC: 780W; (8)Junction temperature Tj: +150 ℃; (9)Storage temperature Tstg: -40 to +125 ℃; (10)Isolation voltage between terminal and copper base Viso: 2500 VAC; (11)Screw Torque Mounting: 3.5 Nm.
Features
2MBI100PC-140 features: (1)Small temperature dependence of the turn-off switching loss; (2)Easy to connect in parallel; (3)Wide RBSOA (square up to 2 time of rated current) and high shortcircuit withstand capability; (4)Low loss and soft-switching (reduction of EMI noise).

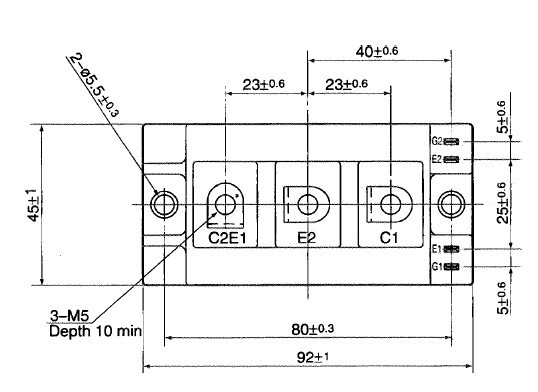

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI100PC-140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
