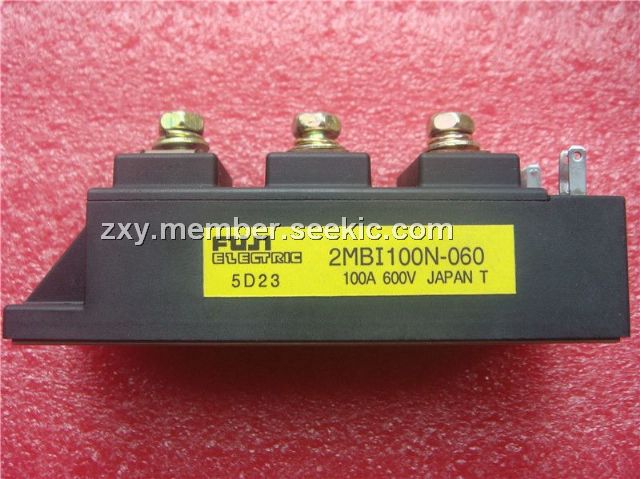

The 2MBI100N060 is an IGBT module. The applications of the 2MBI100N060 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls, and Uninterruptible Power Supply.
Parametrics
2MBI100N060 absolute maximum ratings: (1) Collector-Emitter Voltage VCES: 600V; (2) Gate -Emitter Voltage VGES: ±20V; (3) Collector Current Continuous IC: 100A; (4) Collector Current 1ms IC PULSE: 200A; (5) Max. Power Dissipation PC: 400W; (6)Operating Temperature Tj: +150℃; (7)Storage Temperature Tstg: -40℃ to +125℃; (8)Isolation Voltage A.C. 1min. Vis: 2500V.
Features
2MBI100N060 features: (1) Square RBSOA; (2) Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (3 Times Rated Current).
