Product Summary

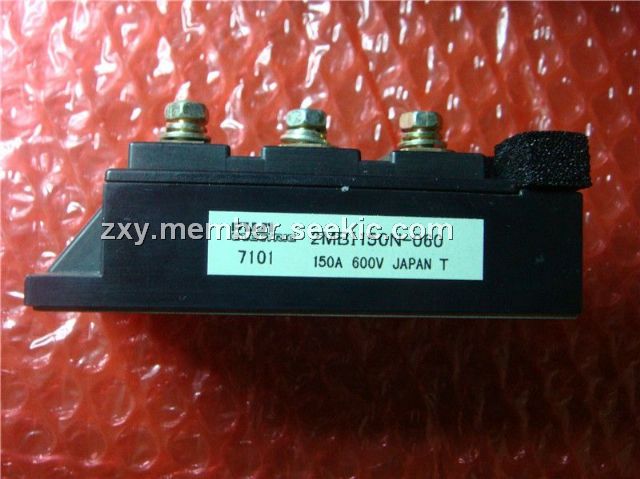

The 2MBI150N060 is an IGBT Module. The applications of the 2MBI150N060 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.
Parametrics
2MBI150N060 absolute maximum ratings: (1) Collector-Emitter Voltage VCES: 600V; (2) Gate -Emitter Voltage VGES: ±20V; (3) Collector Current Continuous IC: 150A; (4) Collector Current 1ms IC PULSE: 300A; (5) Max. Power Dissipation PC: 600W; (6)Operating Temperature Tj: +150℃; (7)Storage Temperature Tstg: -40℃ to +125℃; (8)Isolation Voltage A.C. 1min. Vis: 2500V.
Features
2MBI150N060 features: (1) High speed switching; (2) Voltage drive; (3) Low inductance module structure.

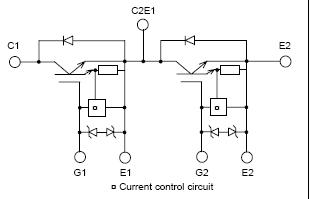

Diagrams
 |
