Product Summary

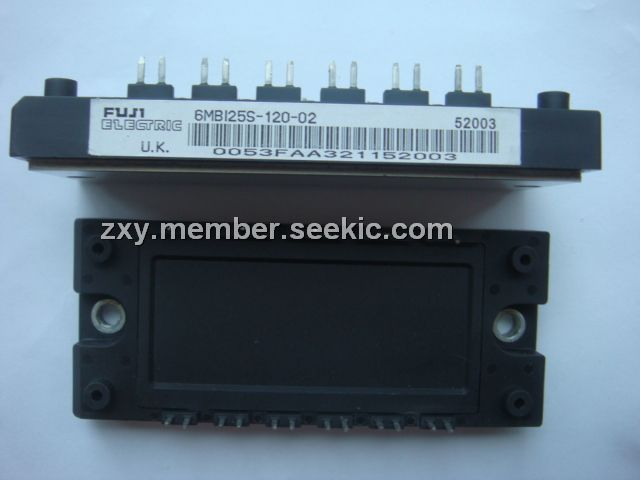

The 6MBI25S-120-02 is an IGBT MODULE.
Parametrics
6MBI25S-120-02 absolute maximum ratings: (1)Collector-Emitter voltage: 1200 V; (2)Gate-Emitter voltage: ±20 V; (3)Collector current Continuous: 35 A at Tc=25℃, 25 A at Tc=80℃, 1ms: 70 A at Tc=25℃, 50 A at Tc=80℃; (4)Max. power dissipation (1 device): 180 W; (5)Operating temperature: +150 ℃; (6)Storage temperature: -40 to +125 ℃; (7)Isolation voltage: AC 2500 V.
Features
6MBI25S-120-02 features: (1)Compact package; (2)P.C.board mount; (3)Low VCE(sat).

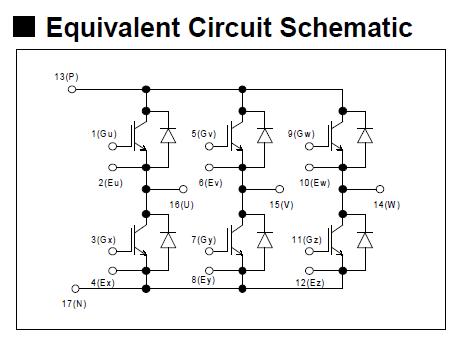

Diagrams
 |
