Product Summary
The Intel 82562V 10/100 Mbps Platform LAN Connect is a highly-integrated device designed for 10 or 100 Mbps Ethernet systems. It is based on the IEEE 10BASE-T and 100BASE-TX standards. The IEEE 802.3u standard for 100BASE-TX defines networking over two pairs of Category 5 unshielded twisted pair cable or Type 1 shielded twisted pair cable. The 82562V complies with the IEEE 802.3u Auto-Negotiation standard and the IEEE 802.3x Full Duplex Flow Control standard. The 82562V also includes a PHY interface compliant to the current platform LAN connect interface.
Parametrics
82562V absolute maximum ratings: (1)Case Temperature under Stress: 0℃ to 135℃; (2)Storage Temperature: -65℃ to 150℃; (3)Supply Voltage with respect to VSS: -0.5 V to 3.45 V; (4)Output Voltages: -0.50 V to 3.45 V; (5)Input Voltages: VCC to 3.45 V.
Features
82562V features: (1)IEEE 802.3 10BASE-T/100BASE-TX compliant physical layer interface; (2)IEEE 802.3u Auto-Negotiatiosupport; (3)Digital Adaptive Equalizatiocontrol; (4)Link status interrupt capability; (5)XOR tree mode support; (6)3-port LED support (speed, link and activity); (7)10BASE-T auto-polarity correction; (8)LAN Connect Interface; (9)PHY detects polarity, MDI-X, and cable lengths. Auto MDI, MDIX crossover at all speeds; (10)Diagnostic loopback mode; (11)1:1 transmit transformer ratio support; (12)Low power (less than 300 mW iactive transmit mode); (13)Reduced power “unplugged mode” (less than 50 mW); (14)Automatic detectioof “unplugged mode”; (15)3.3 V device; (16)81-piMold Cap package--10mm x 10mm x 1.745mm; 0.635mm Ball, 1.0mm Pitch.

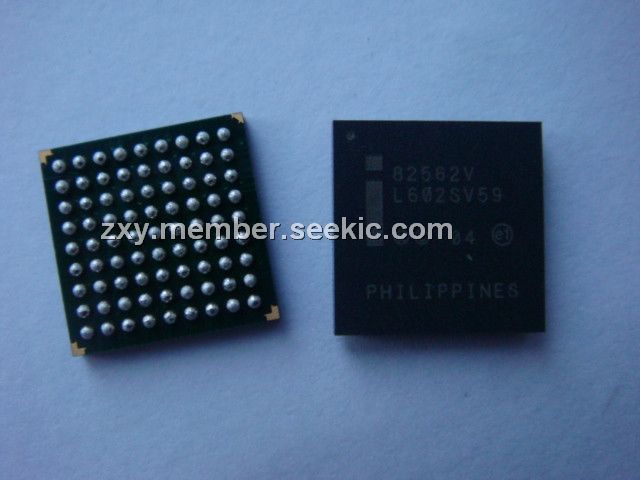

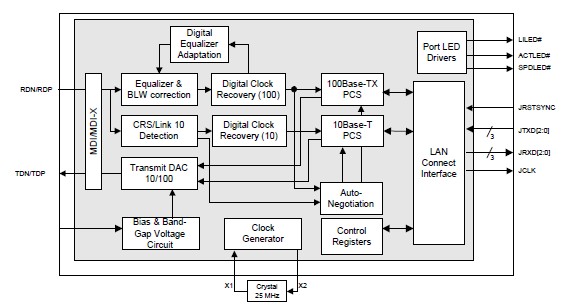

Diagrams
 |
