Product Summary
The AD826ARZ-REEL7 is a dual, high speed voltage feedback op amp. It is ideal for use in applications which require unity gain stability and high output drive capability, such as buffering and cable driving. The 50 MHz bandwidth and 350 V/μs slew rate make the AD826ARZ-REEL7 useful in many high speed applications including: video, CATV, copiers, LCDs, image scanners and fax machines. The AD826ARZ-REEL7 features high output current drive capability of 50 mA min per amp, and is able to drive unlimited capacitive loads. With a low power supply current of 15 mA max for both amplifiers, the device is a true general purpose operational amplifier.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: Plastic (N): See Derating Curves; Small Outline (R): See Derating Curves; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±6 V; (5)Output Short Circuit Duration: See Derating Curves; (6)Storage Temperature Range (N, R): –65°C to +125°C; (7)Operating Temperature Range: –40°C to +85°C; (8)Lead Temperature Range (Soldering 10 seconds): +300°C.
Features
Features: (1)High Speed:50 MHz Unity Gain Bandwidth, 350 V/s Slew Rate, 70 ns Settling Time to 0.01%; (2)Low Power:7.5 mA Max Power Supply Current Per Amp; (3)Easy to Use: Drives Unlimited Capacitive Loads, 50 mA Min Output Current Per Amplifier, Specified for +5 V, ±5 V and ±15 V Operation, 2.0 V p-p Output Swing into a 150 Ω Load(VS = +5 V); (4)Good Video Performance: Differential Gain & Phase Error of 0.07% & 0.11 °; (5)Excellent DC Performance: 2.0 mV Max Input Offset Voltage.

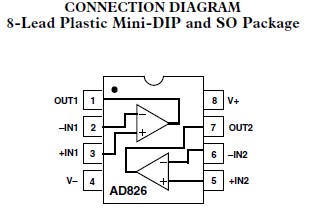

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

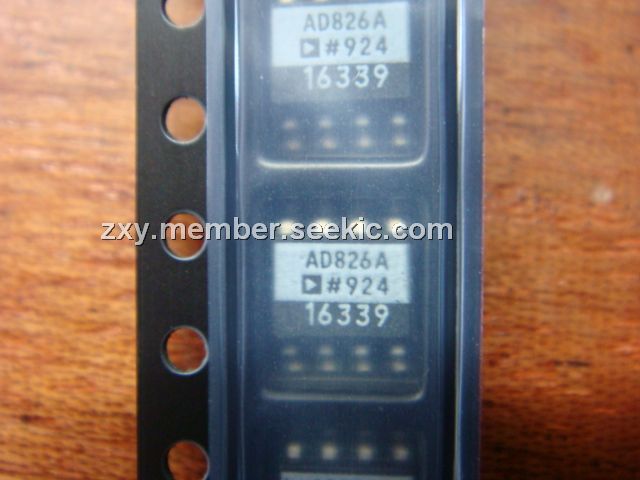

AD826ARZ-REEL7 |
IC OPAMP VF 50MHZ DUAL LP 8SOIC |
Data Sheet |
|
|
||||||||
