Product Summary

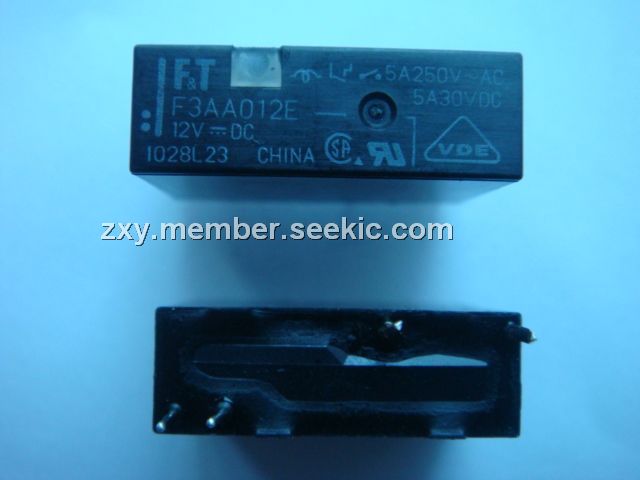

The F3AA012E-HA is a POWER RELAY 1 POLE 5A SLIM TYPE RELAY.

Parametrics

F3AA012E-HA absolute maximum ratings: (1)Resistance (initial): Maximum 100 mΩ at 6 VDC, 1 A; (2)Rating: 5 A, 250 VAC / 30 VDC; (3)Maximum Carry Current: 5A; (4)Maximum Switching Power: 1,250 VA / 150 W; (5)Maximum Switching Voltage: 277 VAC / 30VDC; (6)Maximum Switching Load: 10 mA 5 VDC; (7)Rating Power: 200 mW; (8)Must Operate Power: 113 mW; (9)Operating Temperature: -40℃ to +70℃ (no frost); (10)Operate Time (without diode) Maximum 10 ms; (11)Release Time (without diode) Maximum 10 ms; (12)Mechanical: 5 x 106 operations minimum; (13)Electrical: 100 x 103 operations minimum.

Features

F3AA012E-HA features: (1)HIGH DENSITY MOUNTING; (2)Slim type with 7mm width and 142mm2 mounting space; (3)HIGH ISOLATION; (4)Insulation Distance: Minimum 6mm between coiand contact (conforms to IEC 60065); (5)Dielectric Strength: 4KV; (6)Surge Strength: 10KV; (7)HIGH COIL SENSITIVITY; (8)Nominacoipower consumption of 200mW; (9)CADMIUM FREE CONTACT FOR ECO-PROGRAM; (10)SAFETY STANDARDS: UL, CSA, VDE, SEMKO, CQC; (11)Plastic sealed relay; (12)RoHS compliant since date code: 0435R1, 0432R2, 0429R3, 0434R4, 0437L2.

Diagrams

F3AA012E-HA Schematics
