Product Summary
The ACU2109 is a Monolithic GaAs IC incorporating all upconverter functions of a double conversion CATV, Cable Modem and TV tuner: gain block, oscillator and a double balanced mixer. The oscillator is optimized to meet the stability and phase noise requirements of 256QAM Digital TV, while the amplifier and mixer retain the low distortion necessary for Analog signals. The applications of the ACU2109 include CATV/TV Tuners, Cable Modem Tuners.
Parametrics
ACU2109 absolute maximum ratings: (1)VIF, VLO, VOSC (Pins 1, 10, 14 & 16): 0 to +9 VDC; (2)VRF/VTUNE (Pins 6 & 11): 0 VDC; (3)RF Input Voltage: +60 dBmV; (4)Storage Temperature: -55 to +200 ℃; (5)Soldering Temperature: +260 ℃; (6)Soldering Time: 5 Sec.
Features
ACU2109 features: (1)Integrated Monolithic GaAs Upconverter; (2)Designed for Digital and Analog TV Tuners; (3)Very Low Oscillator Phase Noise; (4)Low Noise Figure and Low Distortion; (5)Low Power Consumption; (6)Small Size; (7)Can be Shut Down Remotely; (8)Operates from 5 Volt Power Supply; (9)High Reliability.

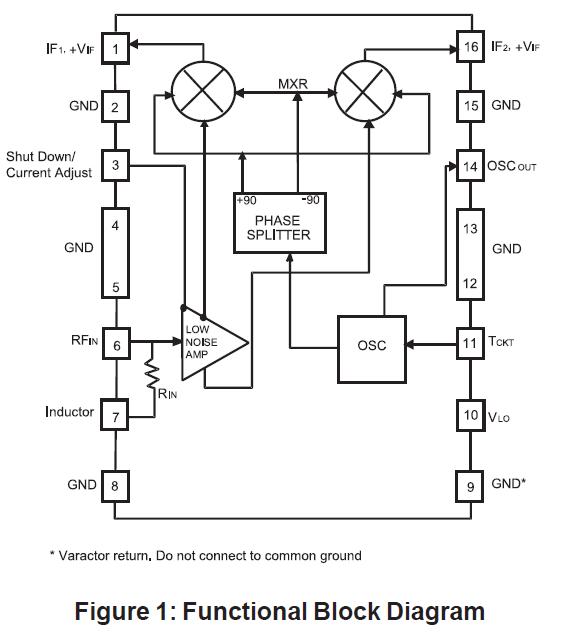

Diagrams
