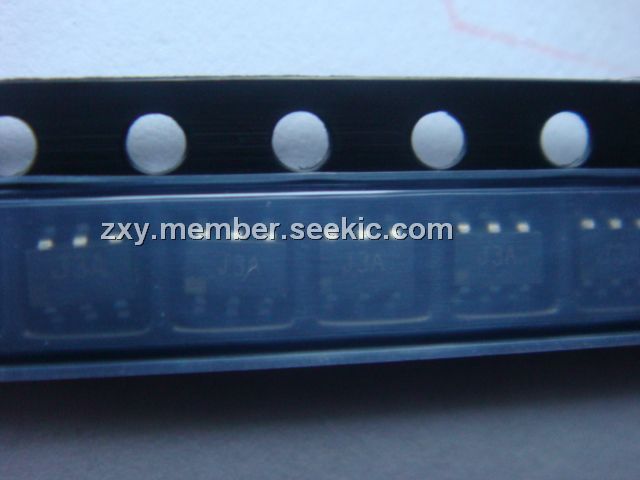

AD8361ARTZ-RL7

LF to 2.5 GHz TruPwr Detector, SOT23-6, 3.3 mW at 3 V supply, 2.7 V to 5.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~2.00

PartNumber:: AD8361ARTZ-RL7

Brand:: Analog Devices - ADI | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-30

From Other Seller

Part Number:AD8361ARTZ-RL7
US $0.50 - 2.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD8361ARTZ-RL7 is a mean-responding power detector for use in high frequency receiver and transmitter signal chains, up to 2.5 GHz. It is very easy to apply. It requires a single supply only between 2.7 V and 5.5 V, a power supply decoupling capacitor, and an input coupling capacitor in most applications. The output is a linear-responding dc voltage with a conversion gain of 7.5 V/V rms. An external filter capacitor can be added to increase the averaging time constant. The AD8361ARTZ-RL7 is intended for true power measurement of simple and complex waveforms. The device is particularly useful for measuring high crest-factor (high peak-to-rms ratio) signals, such as CDMA and W-CDMA. The applications of AD8361ARTZ-RL7 are: Measurement of CDMA, W-CDMA, QAM, other complex modulation waveforms; RF transmitter or receiver power measurement.

Parametrics

AD8361ARTZ-RL7 absolute maximum ratings: (1)Supply Voltage VS: 5.5 V; (2)SREF, PWDN: 0 V, VS; (3)IREF, VS: -0.3 V, VS; (4)RFIN: 1 V rms; (5)Equivalent Power, re 50 Ω: 13 dBm; (6)Internal Power Dissipation: 200 mW; (7)6-Lead SOT-23: 170 mW; (8)8-Lead MSOP: 200 mW; (9)Maximum Junction Temperature: 125℃; (10)Operating Temperature Range: -40℃ to +85℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD8361ARTZ-RL7 features: (1)Calibrated rms response; (2)Excellent temperature stability; (3)Up to 30 dB input range at 2.5 GHz; (4)700 mV rms, 10 dBm, re 50 Ω maximum input; (5)±0.25 dB linear response up to 2.5 GHz; (6)Single-supply operation: 2.7 V to 5.5 V; (7)Low power: 3.3 mW at 3 V supply; (8)Rapid power-down to less than 1 μA.
