ADCS7478AIMF

Product Summary

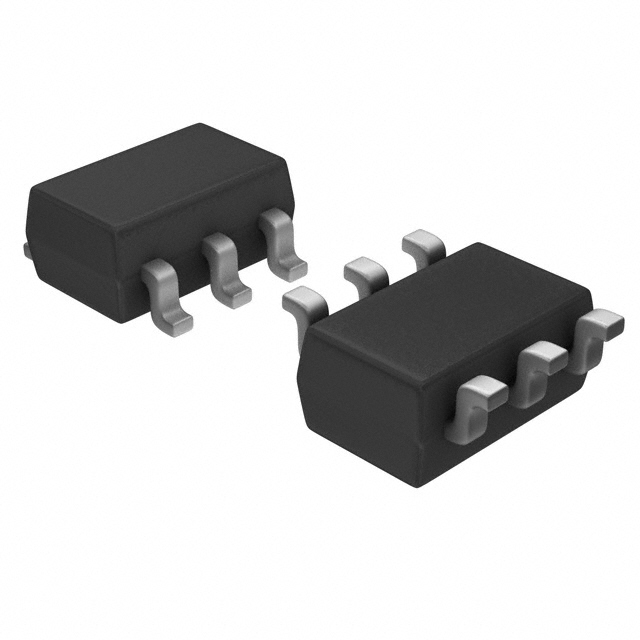

The ADCS7478AIMF is a low power, monolithic CMOS 12-, 10- and 8-bit analog-to-digital converter that operates at 1 MSPS. The ADCS7478AIMF is a dropin replacement for the ADCS7478AIMF. The ADCS7478AIMF is based on a successive approximation register architecture with internal track-and-hold. The serial interface is compatible with several standards, such as SPI., QSPI., MICROWIRE., and many common DSP serial interfaces. The ADCS7478AIMF uses the supply voltage as a reference, enabling the devices to operate with a full-scale input range of 0 to VDD. The conversion rate is determined from the serial clock (SCLK) speed. The ADCS7478AIMF offers a shutdown mode, which can be used to trade throughput for power consumption. The ADCS7478AIMF is operated with a single supply that can range from +2.7V to +5.25V. Normal power consumption during continuous conversion, using a +3V or +5V supply, is 2 mW or 10 mW respectively. The power down feature, which is enabled by a chip select (CS) pin, reduces the power consumption to under 5 μW using a +5V supply. The ADCS7478AIMF is available in a 6-lead, SOT-23 package and in a 6-lead LLP, both of which provide an extremely small footprint for applications where space is a critical consideration. The ADCS7478AIMF is designed for operation over the automotive/extended industrial temperature range of -40℃ to +125℃.

Parametrics

ADCS7478AIMF absolute maximum ratings: (1)Supply Voltage VDD: -0.3V to +6.5V; (2)Voltage on Any Analog Pin to GND: -0.3V to VDD +0.3V; (3)Voltage on Any Digital Pin to GND: -0.3V to 6.5V; (4)Input Current at Any Pin: ±10 mA; (5)ESD Susceptibility Human Body Model: 3500V; (6)ESD Susceptibility Machine Model: 200V; (7)Soldering Temperature, Infrared, 10 seconds: 215℃; (8)Junction Temperature: +150℃; (9)Storage Temperature: -65℃ to +150℃.

Features

ADCS7478AIMF features: (1)Variable power management; (2)Packaged in 6-lead, SOT-23 and LLP; (3)Power supply used as reference; (4)Single +2.7V to +5.25V supply operation; (5)SPI./QSPI./MICROWIRE./DSP compatible.

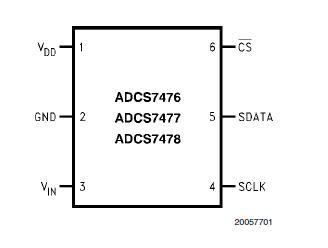

Diagrams
