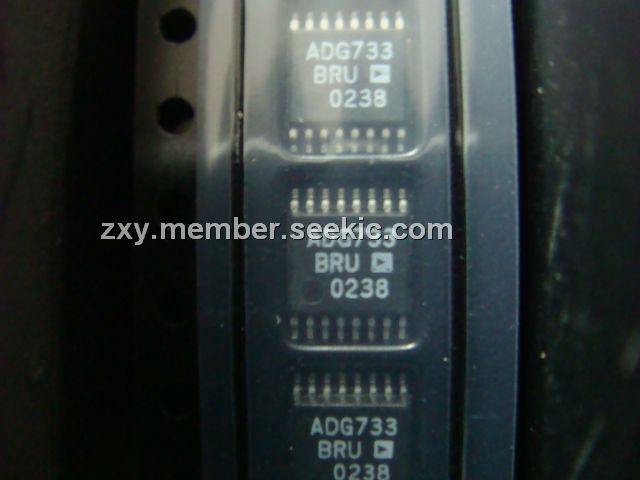

ADG733BRU-REEL7

CMOS, 2.5 ohm Low Voltage, Triple/Quad SPDT Switcher, TSSOP16, 1.8 V to 5.5 V Single Supply

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.50

PartNumber:: ADG733BRU-REEL7

Brand:: Analog Devices - ADI | Pack: TSSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:ADG733BRU-REEL7
US $0.80 - 1.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

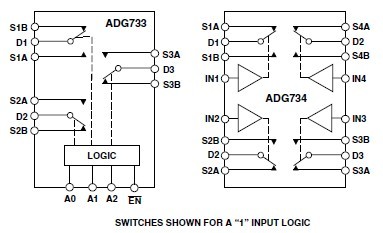

The ADG733BRU-REEL7 is a low voltage, CMOS device comprising three independently selectable SPDT (single pole, double throw)switches and four independently selectable SPDT switches respectively. Low power consumption and operating supply range of 1.8 V to 5.5 V and dual ±3 V make the ADG733BRU-REEL7 ideal for battery powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. An EN input on the ADG733BRU-REEL7 is used to enable or disable the device. When disabled, all channels are switched OFF. The ADG733BRU-REEL7 is available in small TSSOP and QSOP packages.

Parametrics

ADG733BRU-REEL7 absolute maximum ratings: (1)VDD to VSS: 7 V; (2)VDD to GND: –0.3 V to +7 V; (3)VSS to GND: +0.3 V to –3.5 V; (4)Analog Inputs2: VSS – 0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First; (5)Digital Inputs: –0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First; (6)Peak Current, S or D: 100 mA; (7)Continuous Current, S or D: 30 mA; (8)Operating Temperature Range; (9)Industrial (A, B Versions): –40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Lead Temperature, Soldering (10 sec): 300℃; (12)IR Reflow, Peak Temperature: 220℃.

Features

ADG733BRU-REEL7 features: (1)1.8 V to 5.5 V Single Supply; (2)±3 V Dual Supply; (3)2.5Ω On Resistance; (4)0.5Ω On Resistance Flatness; (5)100 pA Leakage Currents; (6)19 ns Switching Times; (7)Triple SPDT: ADG733; (8)Quad SPDT: ADG734; (9)Small TSSOP and QSOP Packages; (10)Low Power Consumption; (11)TTL/CMOS-Compatible Inputs.
