Product Summary
The ADP1712AUJZ-R7 is an evaluation board used to demonstrate the functionality of the ADP1712, ADP1713, and ADP1714 series of linear regulators. Depending on what component combinations are used, the evaluation board can be used for ADP1712 fixed output voltage devices with soft start, ADP1712 adjustable output voltage devices, ADP1713 fixed output voltage devices with a bypass capacitor, and ADP1714 fixed output voltage devices with tracking.
Parametrics
ADP1712AUJZ-R7 absolute maximum ratings: (1)Input voltage range: 2.5 V to 5.5 V; (2)Output current range: 0 mA to 300 mA; (3)Output voltage accuracy: ±1%.
Features
ADP1712AUJZ-R7 features: (1)Operating temperature range: -40°C to +125°C; (2)External soft start; (3)Adjustable output voltages.

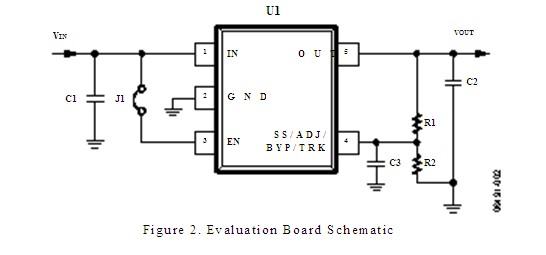

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADP1712AUJZ-R7 |
|
IC REG LDO ADJ .3A TSOT23-5 |
Data Sheet |
|
|
||||||||||||||||||
