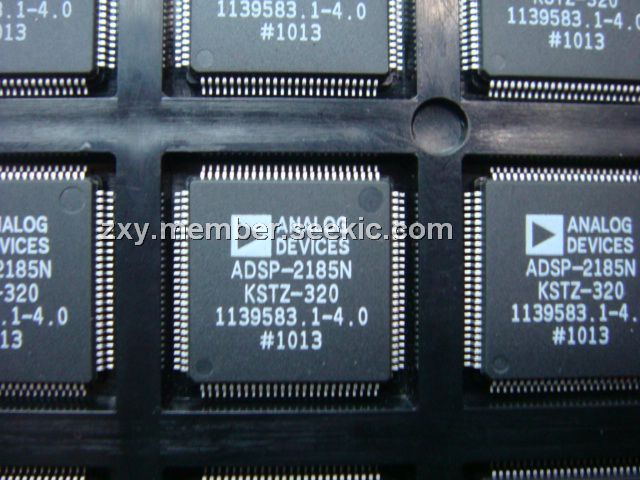

ADSP-2185NKSTZ-320

DSP Microcomputer, LQFP100, -153 dBc/Hz @ 100 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~8.00

PartNumber:: ADSP-2185NKSTZ-320

Brand:: Analog Devices - ADI | Pack: LQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-30

From Other Seller

Part Number:ADSP-2185NKSTZ-320
US $4.00 - 8.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

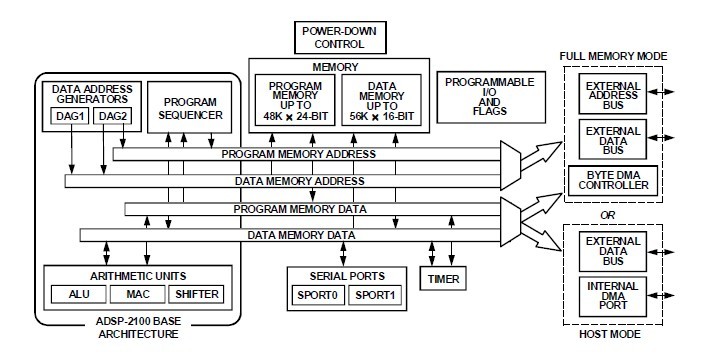

The ADSP-2185NKSTZ-320 consists of six single chip microcomputers optimized for digital signal processing applications. The high-level block diagram for the ADSP-2185NKSTZ-320 appears on the previous page. The ADSP-2185NKSTZ-320 is pin-compatible and is differentiated solely by the amount of on-chip SRAM. This feature, combined with ADSP-2185NKSTZ-320 code compatibility, provides a great deal of flexibility in the design decision. ADSP-2185NKSTZ-320 combines the ADSP-2100 family base architecture (three computational units, data address generators, and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory.

Parametrics

ADSP-2185NKSTZ-320 absolute maximum ratings: (1)Internal Supply Voltage (VDDINT): –0.3 V to +2.2 V; (2)External Supply Voltage (VDDEXT): –0.3 V to +4.0 V; (3)Input Voltage: –0.5 V to +4.0 V; (4)Output Voltage Swing: –0.5 V to VDDEXT +0.5 V; (5)Operating Temperature Range: –40℃ to +85℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature (5 sec) LQFP: –280℃.

Features

ADSP-2185NKSTZ-320 features: (1)12.5 ns Instruction Cycle Time @1.8 V (Internal), 80 MIPS Sustained Performance; (2)Single-Cycle Instruction Execution; (3)Single-Cycle Context Switch; (4)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (5)Multifunction Instructions; (6)Power-Down Mode Featuring Low CMOS Standby; (7)Power Dissipation with 200 CLKIN Cycle Recovery from Power-Down Condition; (8)Low Power Dissipation in Idle Mode.
