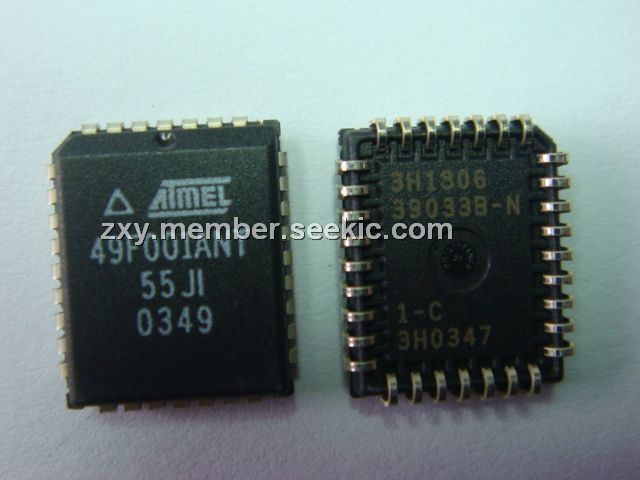

AT49F001ANT-55JI

1-MEGABIT (128 X 8), 5-VOLT ONLY, FLASH MEMORY, PLCC, 5V Read, 45 ns Read Access Time

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~1.10

PartNumber:: AT49F001ANT-55JI

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:AT49F001ANT-55JI
US $1.10 - 1.10
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT49F001ANT-55JI is a 5-volt only in-system reprogrammable Flash memory. Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the device offers access times to 45 ns with power dissipation of just 110 mW over the industrial temperature range.

Parametrics

AT49F001ANT-55JI absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT49F001ANT-55JI features: (1)Single-voltage Operation: -5V Read; -5V Reprogramming; (2)Fast Read Access Time: -45 ns; (3)Internal Program Control and Timer; (4)Sector Architecture: One 16K Bytes Boot Block with Programming Lockout; Two 8K Bytes Parameter Blocks; Two Main Memory Blocks (32K Bytes, 64K Bytes); (5)Fast Erase Cycle Time - 3 Seconds; (6)Byte-by-Byte Programming - 30 μs/Byte Typical; (7)Hardware Data Protection; (8)DATA Polling for End of Program Detection; (9)Low Power Dissipation: 20 mA Active Current; (10)50μA CMOS Standby Current; (11)Typical 10,000 Write Cycles.
