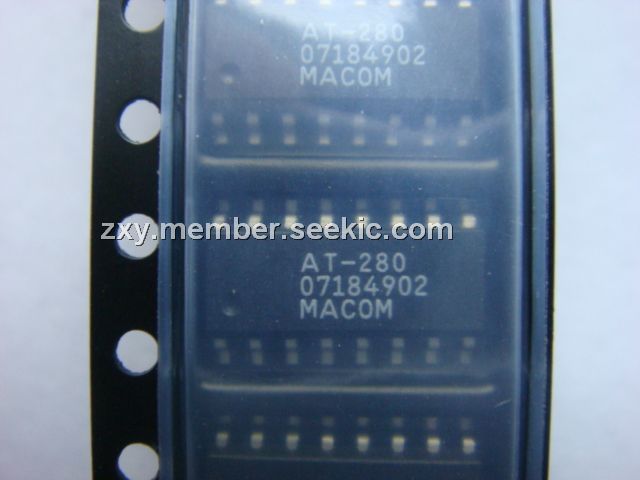

Product Summary

The M/A-COM’s AT-280TR is a 5-bit, 0.5-dB step GaAs MMIC digital attenuator in a low cost SOIC 16-lead surface mount plastic package. The AT-280TR is ideally suited for use where high accuracy, fast switching, very low power consumption and low intermodulation products are required at a low cost. Typical applications include radio and cellular equipment, wireless LANS, GPS equipment and other gain/level control circuits. The AT-280TR is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability.

Parametrics

AT-280TR absolute maximum ratings: (1)Input Power: 0.05 GHz: +27 dBm, 0.5 - 2.0 GHz: +34 dBm; (2)Control Voltage: -8.5 V < VC < +5 V; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃.

Features

AT-280TR features: (1)0.5 dB Attenuation Steps to 15.5 dB; (2)Ultra Low DC Power Consumption; (3)Low Intermodulation Product: +45 dBm IP3; (4)SOIC-16 Plastic Package; (5)Tape and Reel Packaging Available; (6)Temperature Stability: +/-0.15 dB from -40℃ to +85℃.

Diagrams

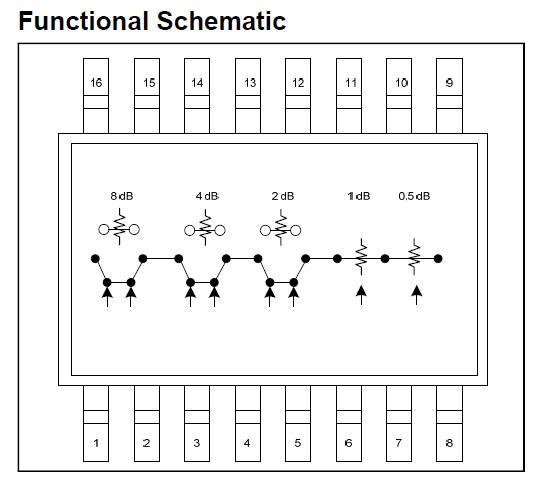

AT-280TR Functional Schematic
