Product Summary
The CD4093BCMX is a Quad 2-Input NAND Schmitt Trigger. It consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitttrigger action on both inputs. The gate switches at different points for positive and negative-going signals. The difference between the positive (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH). The applications of the CD4093BCMX include Wave and pulse shapers, High-noise-environment systems, Monostable multivibrators, Astable multivibrators, NAND logic.
Parametrics
CD4093BCMX absolute maximum ratings: (1)DC Supply Voltage (VDD): -0.5 to +18 VDC; (2)Input Voltage (VIN): -0.5 to VDD +0.5 VDC; (3)Storage Temperature Range (TS): -65℃ to +150℃; (4)Power Dissipation (PD): Dual-In-Line: 700 mW, Small Outline: 500 mW; (5)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.
Features
CD4093BCMX features: (1)Wide supply voltage range: 3.0V to 15V; (2)Schmitt-trigger on each input with no external components; (3)Noise immunity greater than 50%; (4)Equal source and sink currents; (5)No limit on input rise and fall time; (6)Standard B-series output drive; (7)Hysteresis voltage (any input) TA = 25℃.

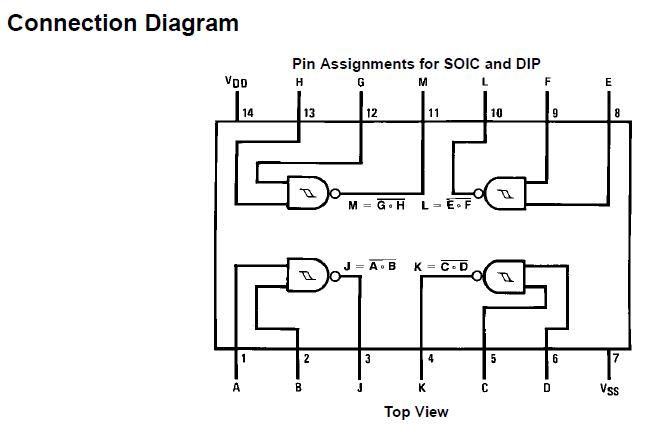

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4093BCM |
|

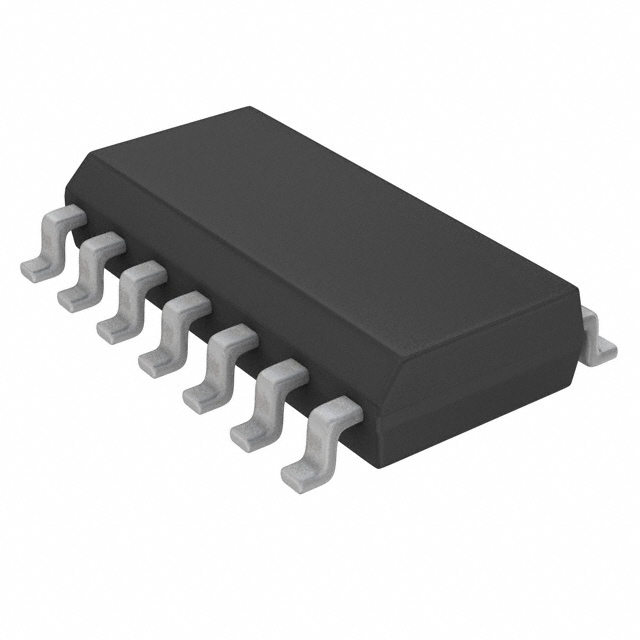

IC TRIGGER SCHM NAND QUAD 14SOIC |
Data Sheet |
Negotiable |
|
||||
|
CD4093BCMX |
|
IC TRIGGER NAND QUAD 2IN 14-SOIC |
Data Sheet |
Negotiable |
|
||||
