Product Summary

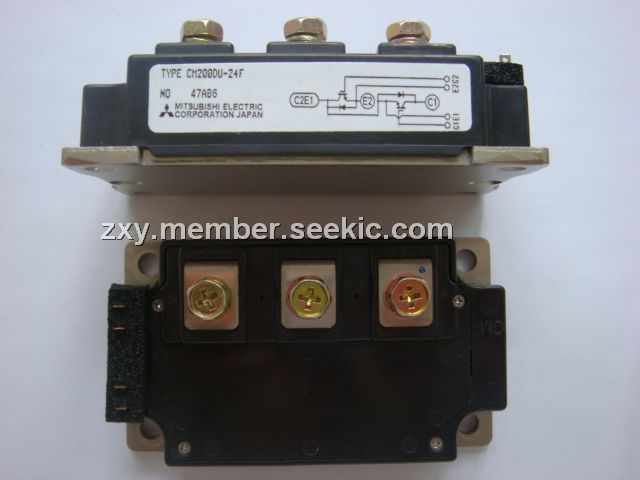

The CM200DU-24F is a MITSUBISHI IGBT module. The applications of the CM200DU-24F include General purpose inverters & Servo controls, etc

Parametrics

CM200DU-24F absolute maximum ratings: (1)Collector-emitter voltage: 1200 V at G-E Short; (2)Gate-emitter voltage: ±20 V at G-E Short; (3)Collector current: 200 A at TC = 25℃, 400 A at Pulse; (4)Emitter current: 200 A at TC = 25℃, 400 A at Pulse; (5)Maximum collector dissipation: 830 W at TC = 25℃; (6)Junction temperature: -40 to +150 ℃; (7)Storage temperature: -40 to +125 ℃; (8)Isolation voltage: 2500 Vrms at Terminals to base plate, f = 60Hz, AC 1 minute.

Features

CM200DU-24F features: (1)IC: 200A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

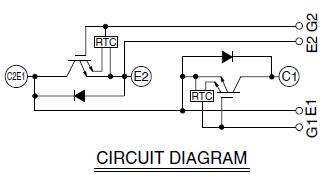

CM200DU-24F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM200DU-24F
CM200DU-24F

IGBT MOD DUAL 1200V 200A F SER
Data Sheet
0-1: $109.34
1-10: $104.06
10-100: $98.03
100-250: $96.52
250-500: $94.26
500-1000: $90.49
