Product Summary

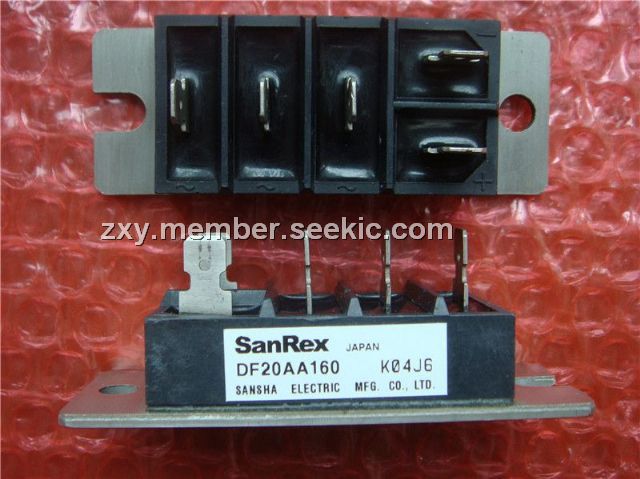

The DF20AA160 is a Power Diode Module. The DF20AA160 is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 20Amp (Tc=119℃) Repetitive peak reverse voltage is up to 1,600V. The applications of the DF20AA160 include AC. DC Moter Drive/AVR/Switching, for three phase rectification.
Parametrics
DF20AA160 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 1600V; (2)Non-Repetitive Peak Reverse Voltage: 1700V; (3)Output Current (D.C.) Three phase full wave, Tc＝119℃: 20A; (4)IFSM Surge forward current 1 cycle, 50/60HZ, peak value, non-repetitive: 220/240A; (5)Tj Operating Junction Temperature: -40℃ to +150℃; (6)Tstg Storage Temperature: -40℃ to +125℃; (7)Isolation Breakdown Voltage (R.M.S.): 2500V; (8) Mass: 90g.
Features
DF20AA160 features: (1)TjMax=150℃; (2)Isolated Mounting Base; (3) High reliability by unique glass passivation; (4) Easy Assemble by the #250 terminal Tab.
