Product Summary
The DM74ALS1035M is a Hex Non-Inverting Driver with Open Collector Outputs. each of which performs the logic identity function. The outputs require an external pull-up resistor for proper logical operation.
Parametrics
DM74ALS1035M absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)OFF-State Output Voltage: 7V; (4)Operating Free Air Temperature Range: 0℃ to +70℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Typical θJA: N Package 76.0℃/W, M Package 106.5℃/W.
Features
DM74ALS1035M absolute maximum ratings: (1)Switching specifications at 50 pF; (2)Switching specifications guaranteed over full temperature and VCC range; (3)Advanced oxide-isolated, ion-implanted Schottky TTL process; (4)Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart; (5)Improved AC performance over Schottky and low power Schottky counterparts.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DM74ALS1035M |
|

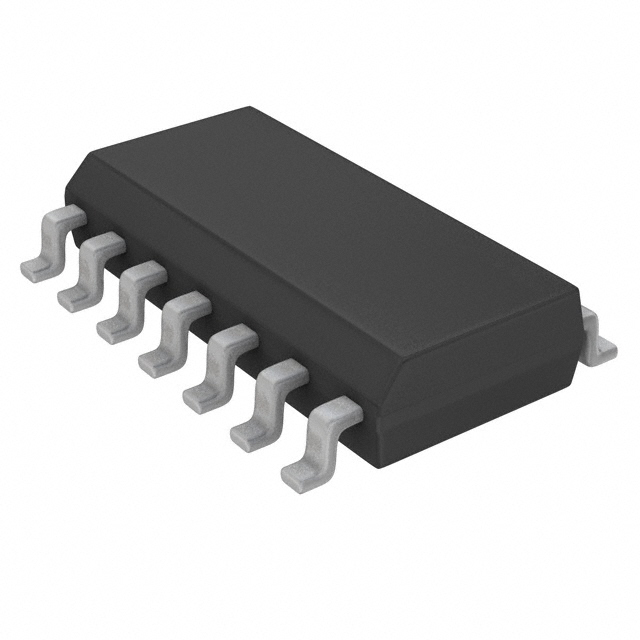

IC DRIVER HEX NON-INV 14SOIC |
Data Sheet |
Negotiable |
|
||||
 |
DM74ALS1035M_Q |
Fairchild Semiconductor |
Buffers & Line Drivers Hex Non-Invt Drv |
Data Sheet |
Negotiable |
|
||||
|
DM74ALS1035MX |
|
IC DRIVER HEX NON-INV 14SOIC |
Data Sheet |
Negotiable |
|
||||
