Product Summary
The DS14196WM is a five driver, three receiver device which conforms to the EIA/TIA-232-E and the ITU-T V.28 standards. The flow-through pinout facilitates simple non-crossover board layout. The DS14196WM provides a peripheral side one-chip solution for the common 9-pin serial RS-232 interface between data terminals and data communications equipment. The DS14196WM offers optimum performance when used with the DS14185 3 x 5 Driver/Receiver, a host side one-chip solution for the common 9-pin serial RS-232 interface between data terminals and data communications equipment.
Parametrics
DS14196WM absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Supply Voltage (V+): +15V; (3)Supply Voltage (V-): -15V; (4)Driver Input Voltage: 0V to VCC; (5)Driver Output Voltage (Power Off): ±15V; (6)Receiver Input Voltage: ±25V; (7)Receiver Output Voltage (ROUT): 0V to VCC; (8)Maximum Power Package Dissipation @ +25℃: M Package 1524 mW, Derate M Package 12.2 mW/℃ above 25℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature Range (Soldering, 4 sec.): +260℃; (11)ESD Ratings (HBM. 1.5 kΩ, 100 pF): 31.5 kV.
Features
DS14196WM features: (1)Replaces two 1488s and one 1489; (2)Conforms to EIA/TIA-232-E and ITU-T V.28; (3)5 drivers and 3 receivers; (4)Flow-through pinout; (5)Failsafe receiver outputs high when inputs open; (6)20-pin wide SOIC package; (7)LapLink compatible-230.4 kbps data rate; (8)Pin compatible with: SN75196, GD75323.

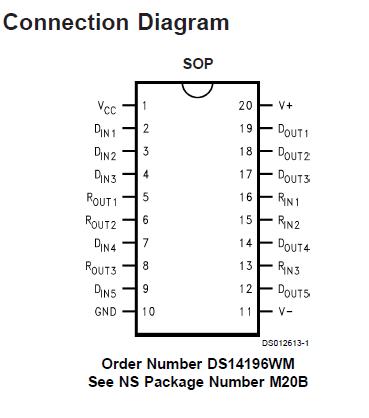

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

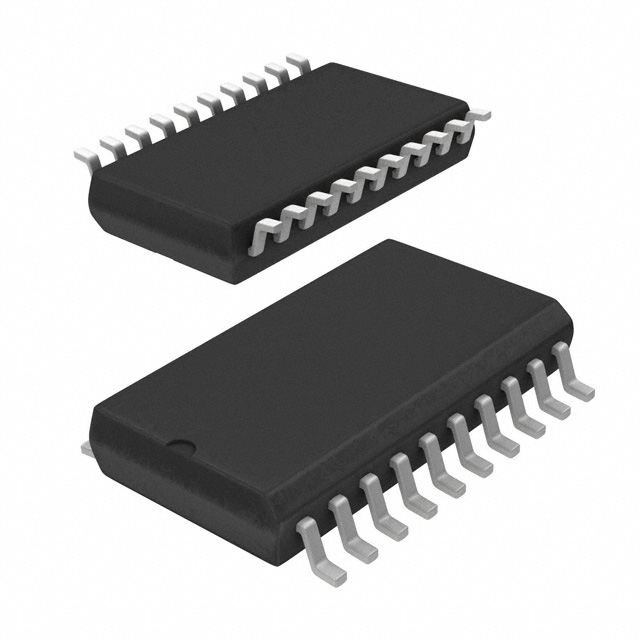

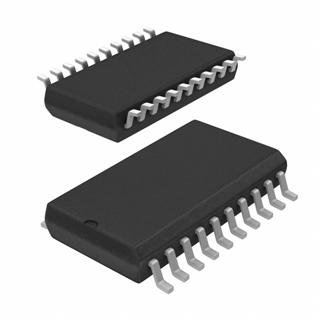

 DS14196WM |
|
IC DVR/RCVR EIA/TIA-232 20-SOIC |
Data Sheet |
Negotiable |
|
||||
|
DS14196WMX |
|
IC DRIVER/REC EIA/TIA232 20-SOIC |
Data Sheet |
Negotiable |
|
||||
