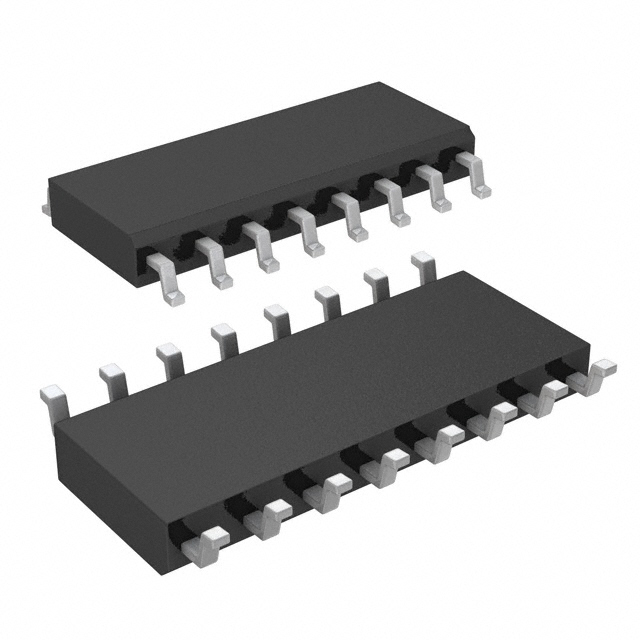

DS34C87TMX/NOPB, quad differential line driver, -0.5 to 7.0V, ±20 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.88~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.88~0.90

PartNumber:: DS34C87TMX/NOPB

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:DS34C87TMX/NOPB
US $0.88 - 0.90
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

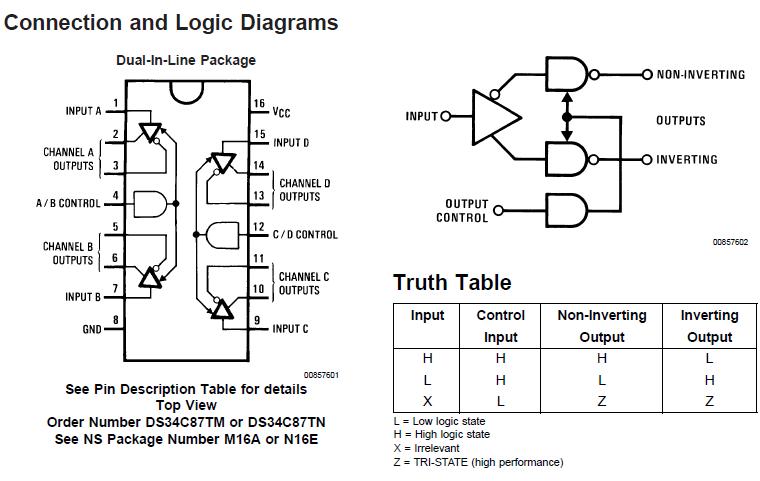

Product Summary

The DS34C87TMX/NOPB is a quad differential line driver designed for digital data transmission over balanced lines. The DS34C87TMX/NOPB meets all the requirements of EIA standard RS-422 while retaining the low power characteristics of CMOS. This enables the construction of serial and terminal interfaces while maintaining minimal power consumption. The DS34C87TMX/NOPB accepts TTL or CMOS input levels and translates these to RS-422 output levels. This part uses special output circuitry that enables the individual drivers to power down without loading down the bus. The DS34C87TMX/NOPB has separate enable circuitry for each pair of the four drivers. The DS34C87TMX/NOPB is pin compatible to the DS3487T. All inputs are protected against damage due to electrostatic discharge by diodes to VCC and ground.

Parametrics

DS34C87TMX/NOPB absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 7.0V; (2)DC Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT ): -0.5 to 7V; (4)Clamp Diode Current (IIK , IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±150 mA; (6)DC VCC or GND Current (ICC): ±150 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Maximum Power Dissipation (PD) @ 25℃: Plastic "N" Package 1736 mW, SOIC Package 1226 mW; (9)Lead Temperature (TL) (Soldering 4 sec): 260℃.

Features

DS34C87TMX/NOPB features: (1)TTL input compatible; (2)Typical propagation delays: 6 ns; (3)Typical output skew: 0.5 ns; (4)Outputs won’t load line when VCC = 0V; (5)Meets the requirements of EIA standard RS-422; (6)Operation from single 5V supply; (7)TRI-STATE outputs for connection to system buses; (8)Low quiescent current; (9)Available in surface mount.
