DS90CR581MTD

LVDS Transmitter 24-Bit Color Flat Panel Display (FPD) Link, 56TSSOP, DS90CR581MTD, -0.3 to +6V, 1.63W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~4.50

PartNumber:: DS90CR581MTD

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:DS90CR581MTD
US $4.00 - 4.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

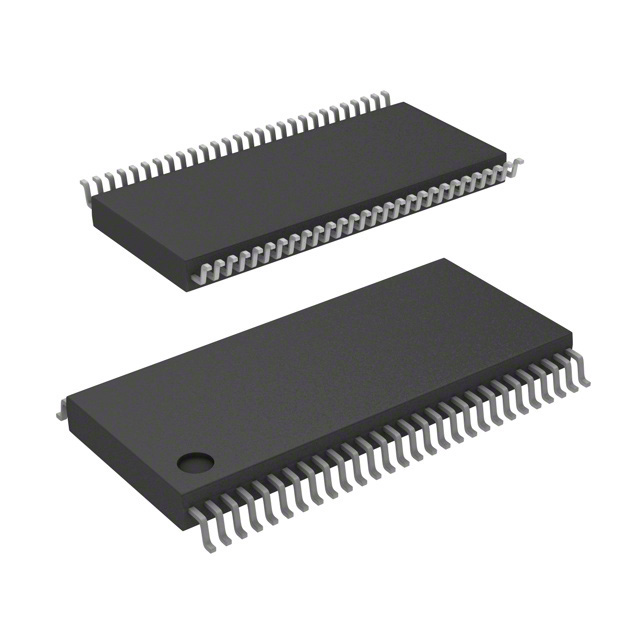

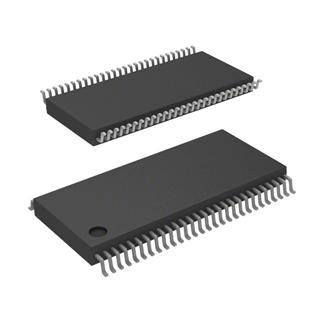

The DS90CR581MTD is a LVDS Transmitter 24-Bit Color Flat Panel Display (FPD) Link. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and transmitted. At a transmit clock frequency of 40 MHz, 24 bits of RGB data and 4 bits of LCD timing and control data (FPLINE, FPFRAME, DRDY, CNTL) are transmitted at a rate of 280 Mbps per LVDS data channel. Using a 40 MHz clock, the data throughput is 140 Megabytes per second. The DS90CR581MTD is intended to interface to any of the FPD Link receivers. The chipset is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.

Parametrics

DS90CR581MTD absolute maximum ratings: (1)Supply Voltage (VCC): -0.3 to +6V; (2)CMOS/TTL Input Voltage: -0.3 to (VCC + 0.3V); (3)LVDS Driver Output Voltage: -0.3 to (VCC + 0.3V); (4)LVDS Output Short Circuit Duration: continuous; (5)Junction Temperature: +150℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (Soldering, 4 sec.): +260℃; (8)Maximum Package Power Dissipation @ +25℃: 1.63W; (9)Package Derating: 12.5 mW/℃ above +25℃.
