Product Summary

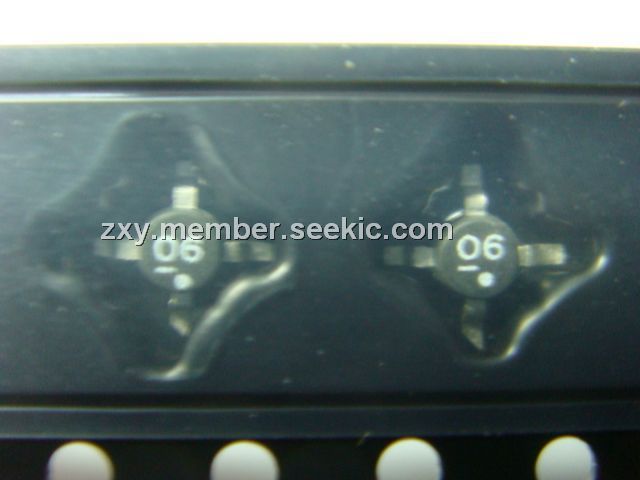

The ERA-6SM is a 50Ω, BROADBAND, DC to 8 GHz MONOLITHIC AMPLIFIER.

Parametrics

ERA-6SM absolute maximum ratings: (1)operating temperature: -45℃ to 85℃; (2)storage temperature: -65° to 150℃.

Features

ERA-6SM features: (1)low thermal resistance; (2)miniature microwave amplifier; (3)frequency range, DC to 8 GHz, usable to 10 GHz; (4)up to 18.4 dBm typ. (16.5 dBm min) output power.

Diagrams

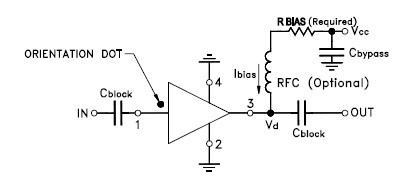

ERA-6SM typical biasing configuration
