Product Summary
The FAN1112SX is a 1.2V low dropout three-terminal regulator with 1A output current capability. The device has been optimized for low voltage where transient response and minimum input voltage are critical. The applications of the FAN1112SX include: (1)Post regulator for switching supplies; (2)Supply for low-voltage processors.
Parametrics
FAN1112SX absolute maxing ratings: (1)VIN: max=18V; (2)Operating Junction Temperature Range: min=0℃, max=125℃; (3)Storage Temperature Range: min=-65℃, max=150℃; (4)Lead Temperature (Soldering, 10 sec.): max=300℃.
Features
FAN1112SX features: (1)Low dropout voltage; (2)Load regulation: 0.05% typical; (3)Trimmed current limit; (4)On-chip thermal limiting; (5)Standard SOT-223 and TO-252 packages; (6)Three-terminal fixed 1.2V.

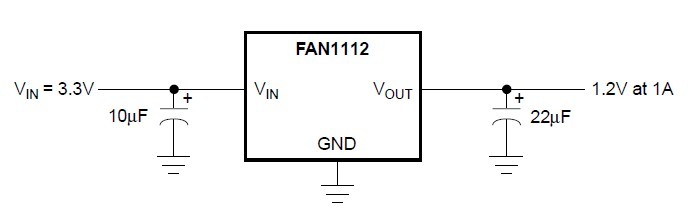

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FAN1112SX |
Fairchild Semiconductor |
Low Dropout (LDO) Regulators Low Dropout Linear |
Data Sheet |
Negotiable |
|
||||
 |
FAN1112SX_Q |
Fairchild Semiconductor |
Low Dropout (LDO) Regulators Low Dropout Linear |
Data Sheet |
Negotiable |
|
||||
