Product Summary

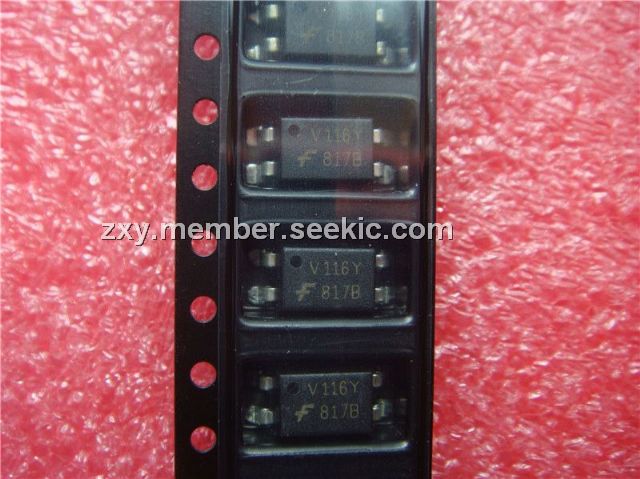

The FOD817B3S is a 4-PIN phototransistor optocoupler. It consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package. The FOD817B3S is used in Power supply regulators, Digital logic inputs, Microprocessor inputs.
Parametrics
FOD817B3S absolute maxing ratings: (1)Storage Temperature TSTG: -55 to +125 ℃; (2)Operating Temperature TOPR: -30 to +100 ℃; (3)Lead Solder Temperature TSOL: 260℃ for 10 sec; (4)Total Device Power Dissipation PD: 200 mW; (5)Continuous Forward Current IF: 50 mA; (6)Reverse Voltage VR: 6 V.
Features
FOD817B3S features: (1)Applicable to Pb-free IR reflow soldering; (2)Compact 4-pin package; (3)Current transfer ratio in selected groups: 300% to 600%; (4)C-UL, UL and VDE approved; (5)High input-output isolation voltage of 5000 Vrms.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FOD817B3S |
Fairchild Semiconductor |
Transistor Output Optocouplers Phototransistor |
Data Sheet |
|
|
||||||||||||
|
FOD817B3SD |
Fairchild Semiconductor |
Transistor Output Optocouplers Phototransistor Output Optocoupler |
Data Sheet |
|
|
||||||||||||
